Drive Belt Inspection / Changing Engine Coolant

MA-39prose procedure

1
Inspect for cracks, fraying, wear or oil adhesion. If necessary, replace with new one.
The belts should not touch the bottom of the pulley groove.

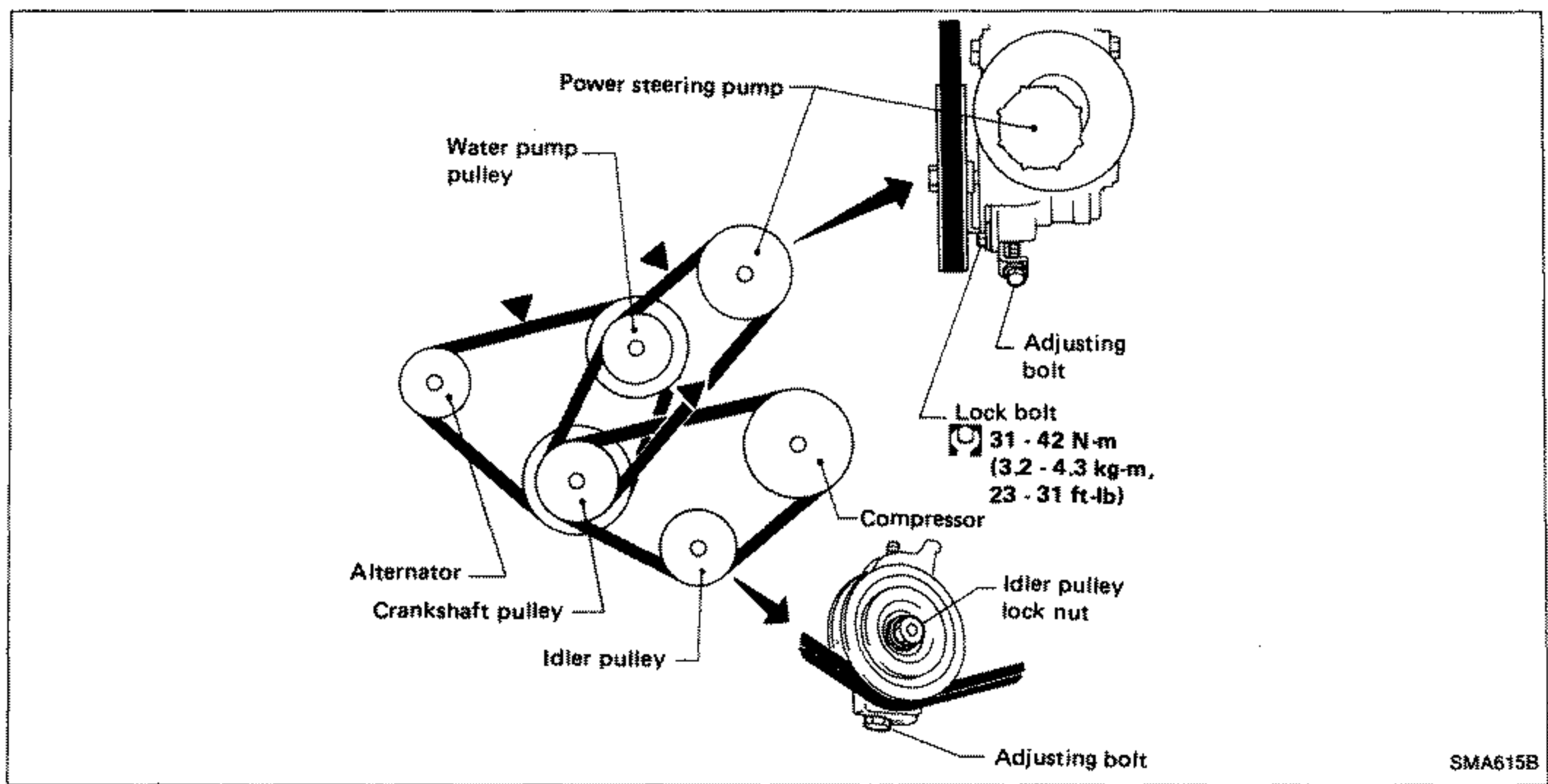

SMA615B
2
Inspect drive belt deflections by pushing on the belt midway between pulleys.
Adjust if belt deflections exceed the limit.

Component	Used belt deflection - Limit	Used belt deflection - Deflection after adjustment	Deflection of new belt
Alternator	13.5 (0.531)	8.5 - 9.5 (0.335 - 0.374)	7.5 - 8.5 (0.295 - 0.335)
Air conditioner compressor	12.5 (0.492)	9 - 10 (0.35 - 0.39)	6 - 8 (0.24 - 0.31)
Power steering oil pump	10.5 (0.413)	7 - 9 (0.28 - 0.35)	6.5 - 8.5 (0.256 - 0.335)
Applied pushing force	98 N (10 kg, 22 lb)	98 N (10 kg, 22 lb)	98 N (10 kg, 22 lb)

Alternator

Used belt deflection - Limit13.5 (0.531)

Used belt deflection - Deflection after adjustment8.5 - 9.5 (0.335 - 0.374)

Deflection of new belt7.5 - 8.5 (0.295 - 0.335)

Air conditioner compressor

Used belt deflection - Limit12.5 (0.492)

Used belt deflection - Deflection after adjustment9 - 10 (0.35 - 0.39)

Deflection of new belt6 - 8 (0.24 - 0.31)

Power steering oil pump

Used belt deflection - Limit10.5 (0.413)

Used belt deflection - Deflection after adjustment7 - 9 (0.28 - 0.35)

Deflection of new belt6.5 - 8.5 (0.256 - 0.335)

Applied pushing force

Used belt deflection - Limit98 N (10 kg, 22 lb)

Used belt deflection - Deflection after adjustment98 N (10 kg, 22 lb)

Deflection of new belt98 N (10 kg, 22 lb)

NOTE

Unit: mm (in)

IMPORTANT

Inspect drive belt deflections when engine is cold. If engine is hot, wait 30 minutes or more and check deflections.

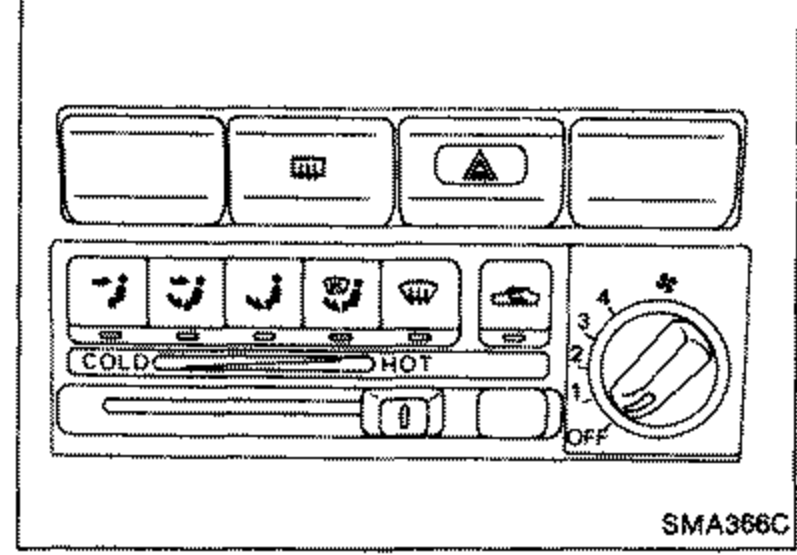

Changing Engine Coolant

WARNING

To avoid the danger of being scalded, never attempt to change the coolant when the engine is hot.
