Engine Maintenance — Engine Oil Change / Engine Oil Filter Change (CD)

MA-55prose procedure

CD17 and CD20 diesel engine oil refill capacities; use API CD oil.

Engine Oil Change

Engine Oil Change

  1. 1
    Warm up engine, and check for oil leakage from engine components.

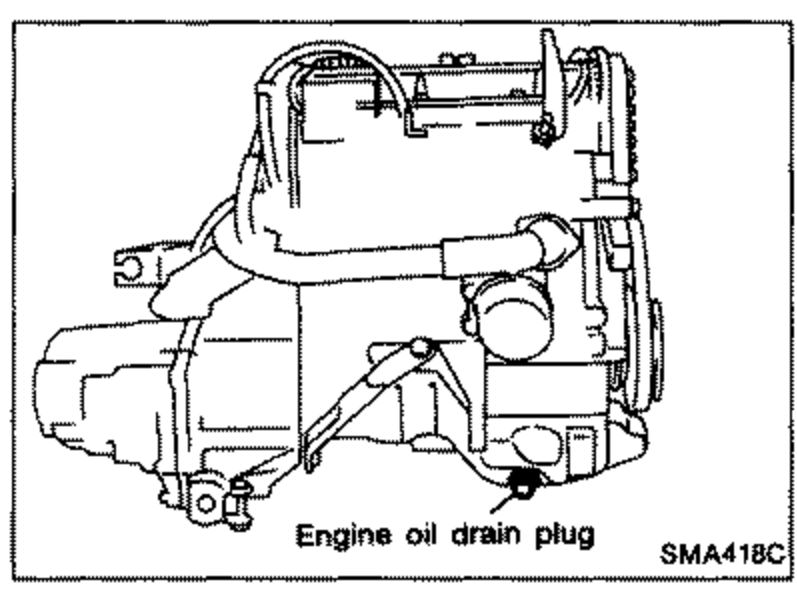

    Line drawing of the engine showing the 'Engine oil drain plug' location at the bottom of the oil pan, with a leader line pointing to it.
    SMA418C
  2. 2
    Remove oil drain plug and drain oil.
  3. 3
    Tighten oil drain plug.
  4. 4
    Fill with engine oil.
    Use recommended engine oil "API CD" with suitable viscosity.

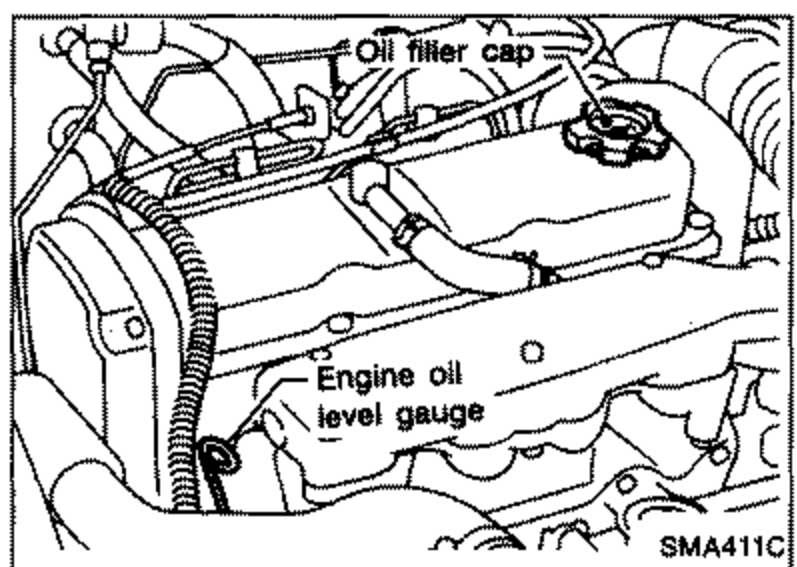

    Line drawing of the engine showing the 'Oil filler cap' at top and the 'Engine oil level gauge' (dipstick) location, with leader lines pointing to each.
    SMA411C
  5. 5
    Confirm oil level and warm up engine.
  6. 6
    Recheck oil level and adjust it to "H" level if necessary.

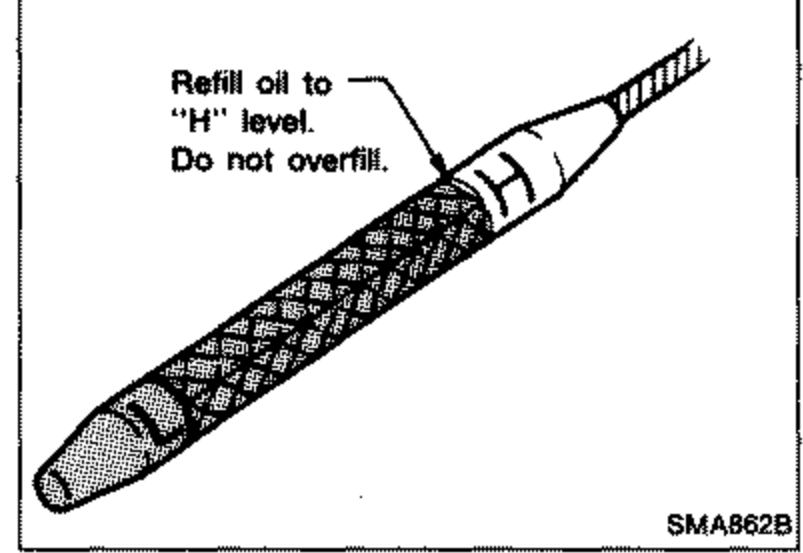

    Line drawing of the oil level dipstick showing the 'H' (high) and 'L' marks, with a note to refill oil to 'H' level and do not overfill.
    SMA862B

Oil refill capacity — Unit: ℓ (Imp qt)

Without oil filter
CD174.4 (3-7/8)
CD204.9 (4-3/8)
With oil filter
CD174.9 (4-3/8)
CD205.4 (4-3/4)

Engine Oil Filter Change

  1. 1
    Remove oil filter with Tool.
    Be careful not to burn yourself, as engine and engine oil are hot.

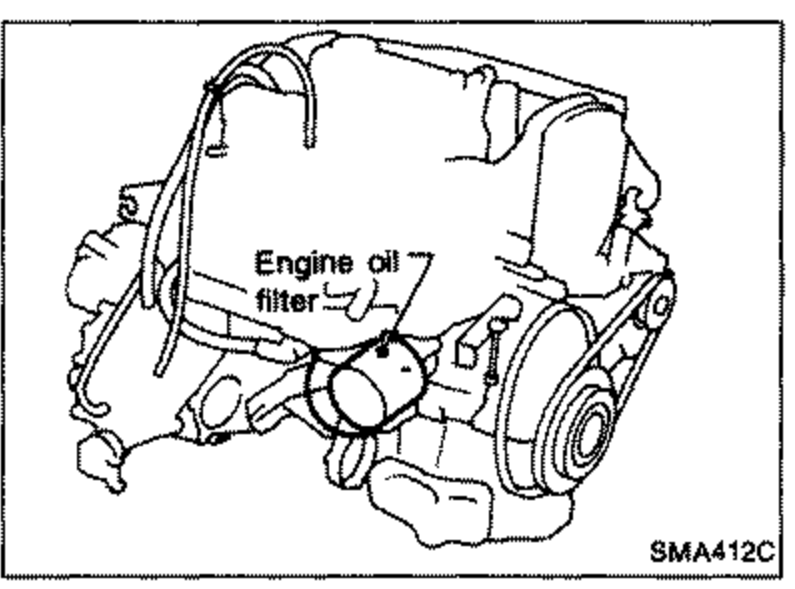

    Line drawing of the engine showing the 'Engine oil filter' location, with a leader line pointing to it, illustrating oil filter removal.
    SMA412C
