Changing Fuel Filter (Cont'd) / Changing Air Cleaner Filter

MA-32prose procedure

Fuel filter location differs between SR20DE and SR20DET. Fuse box layout differs between L.H.D. and R.H.D. models.

Continued from MA-31

ENGINE MAINTENANCE

Changing Fuel Filter (Cont'd)

  1. 1
    Remove fuse for fuel pump.

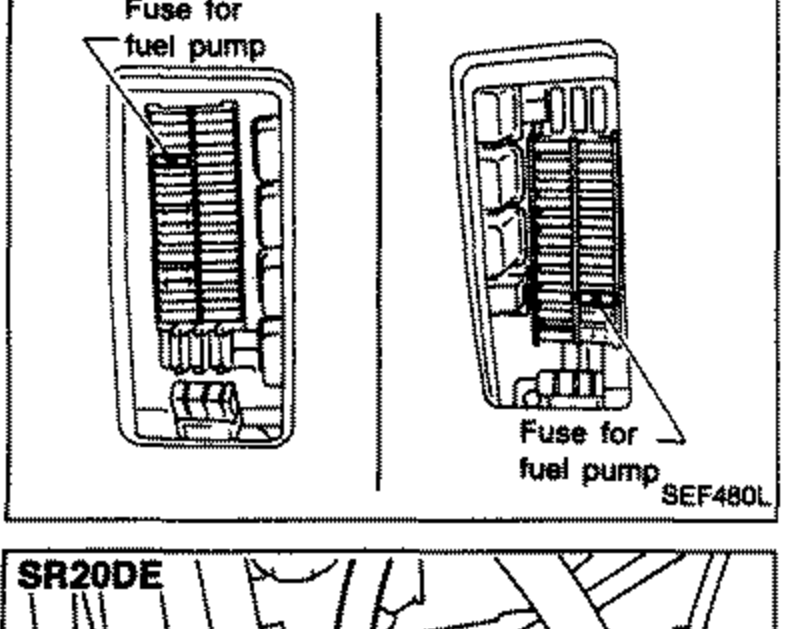

    Two fuse box illustrations side by side for L.H.D. models and R.H.D. models, each identifying the 'Fuse for fuel pump' location.
    SEF480L
  2. 2
    Start engine.
  3. 3
    After engine stalls, crank engine two or three times to make sure that fuel pressure is released.
  4. 4
    Turn ignition switch off and install fuse for fuel pump.
  5. 5
    Loosen fuel hose clamps.

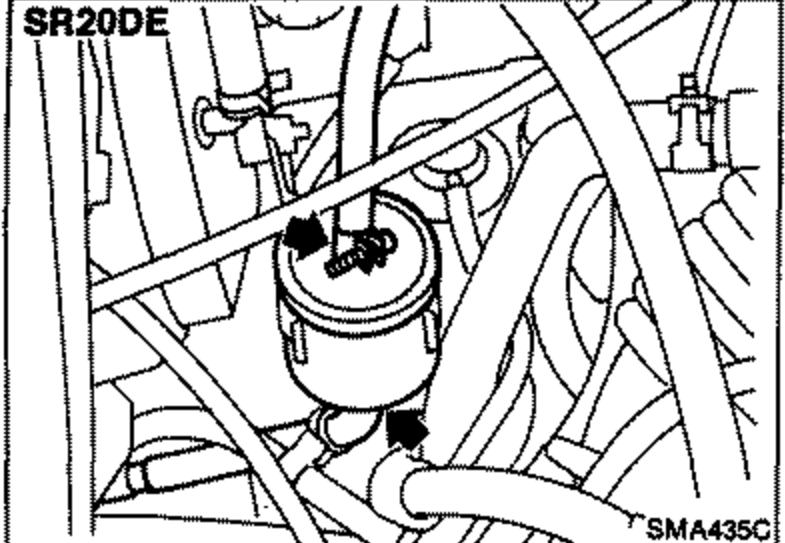

    Engine bay view of the SR20DE fuel filter location with the fuel hose clamps. Callout 'SR20DE'.
    SMA435C
  6. 6
    Replace fuel filter.
    Be careful not to spill fuel over engine compartment. Place a shop towel to absorb fuel.
    Use a high-pressure type fuel filter. Do not use a synthetic resinous fuel filter.
    When tightening fuel hose clamps, refer to "Checking Fuel Lines".

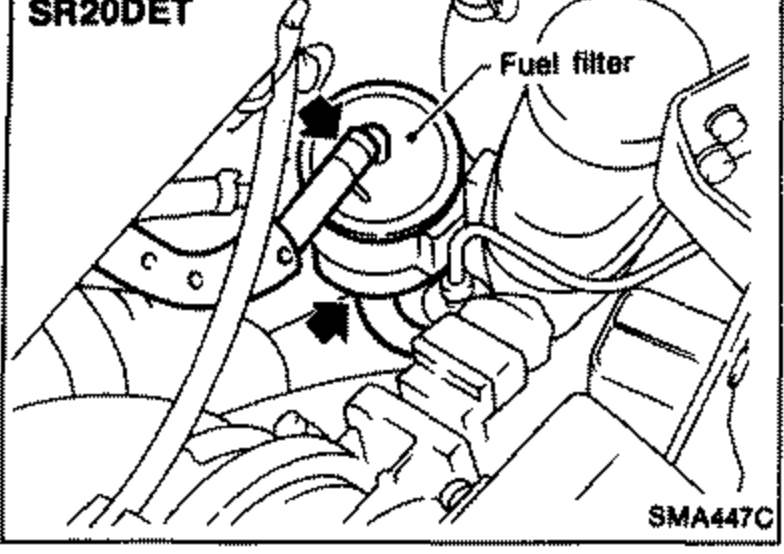

    Engine bay view of the SR20DET fuel filter. Callouts 'SR20DET' and 'Fuel filter' with arrows pointing to hose clamps.
    SMA447C

Changing Air Cleaner Filter

Viscous paper type

The viscous paper type filter does not need cleaning between renewals.
