Cleaning and Replacing Air Cleaner Filter / Changing Engine Oil / Changing Engine Oil Filter
MA-42prose procedureCleaning and Replacing Air Cleaner Filter (Dry paper type)
Clean or replace element more often under dusty driving conditions.
Changing Engine Oil
WARNING
Be careful not to burn yourself, as the engine oil may be hot.
Changing Engine Oil
- 1Warm up engine, and check for oil leakage from engine components.

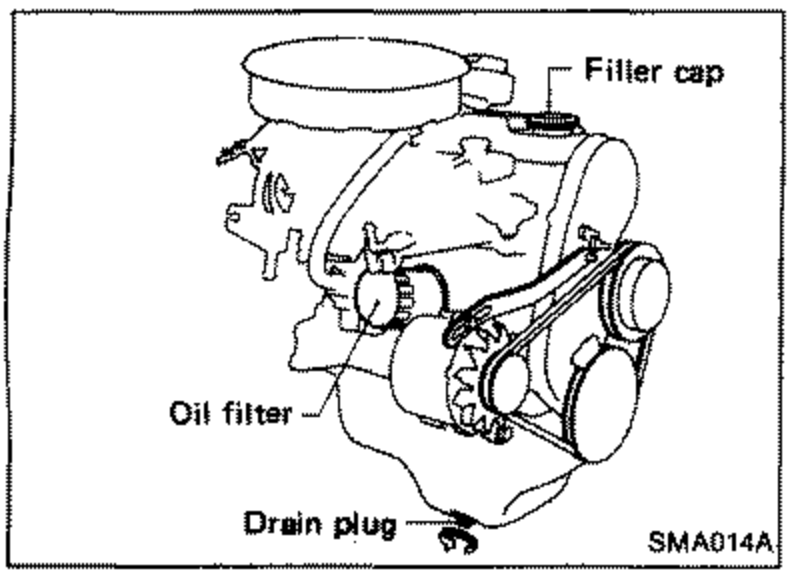

SMA014A - 2Stop the engine.
- 3Remove oil filler cap and drain plug.
- 4Drain oil and refill with new engine oil.Oil capacity (Approximately): With oil filter change 3.2 ℓ (2-7/8 Imp qt); Without oil filter change 2.8 ℓ (2-1/2 Imp qt)
- 5Check oil level.

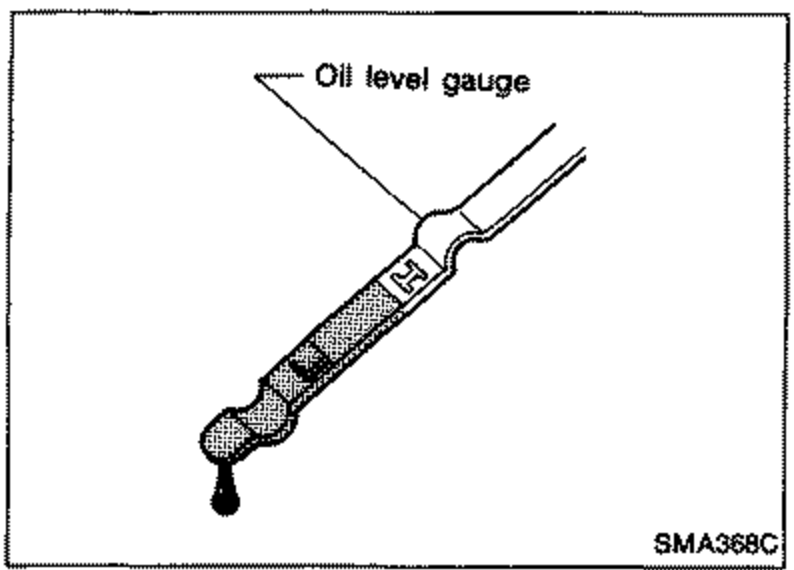

SMA368C - 6Start engine. Check area around drain plug and oil filter for any sign of oil leakage.
- 7Run engine for a few minutes, then turn it off. After several minutes check oil level.
CAUTION
Be sure to clean drain plug and install with new washer.
| Specification | Value |
|---|---|
| Drain plugtightening torque | 29 - 39N-m (3.0 - 4.0 kg-m, 22 - 29 ft-lb) |
Drain plugtightening torque
29 - 39N-m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)
CAUTION
Use recommended engine oil "API SE, SF or SG" with suitable viscosity.
The refill capacity changes depending on the oil temperature and drain time, use these values as a reference and be certain to check with the dipstick when changing the oil.
Changing Engine Oil Filter

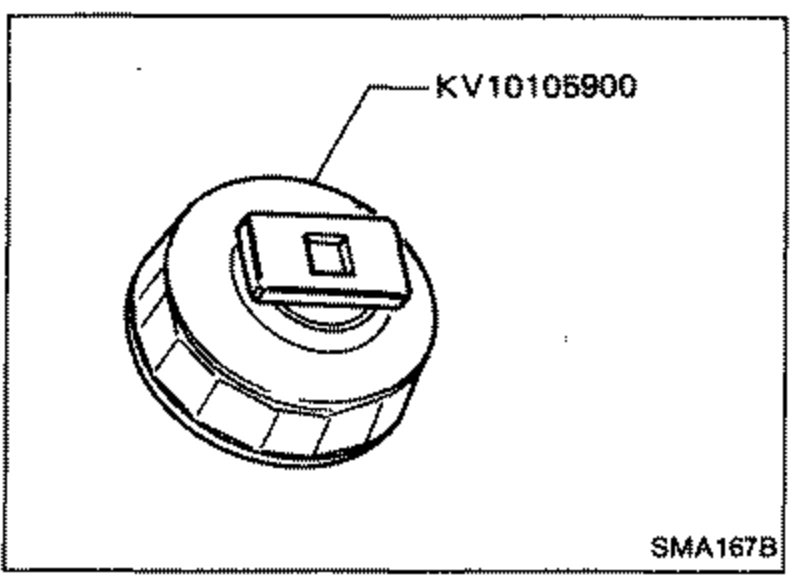

- 1Remove oil filter with Tool.Be careful not to burn yourself, as engine and engine oil are hot.
SMA167B
