Cleaning and Changing Air Cleaner Filter (Cont'd) / Changing Engine Oil
MA-22prose procedureExcept GA16DE models
Changing Engine Oil
WARNING
Be careful not to burn yourself, as the engine oil is hot.
Changing Engine Oil
- 1Warm up engine, and check for oil leakage from engine components.
- 2Remove drain plug and oil filler cap.

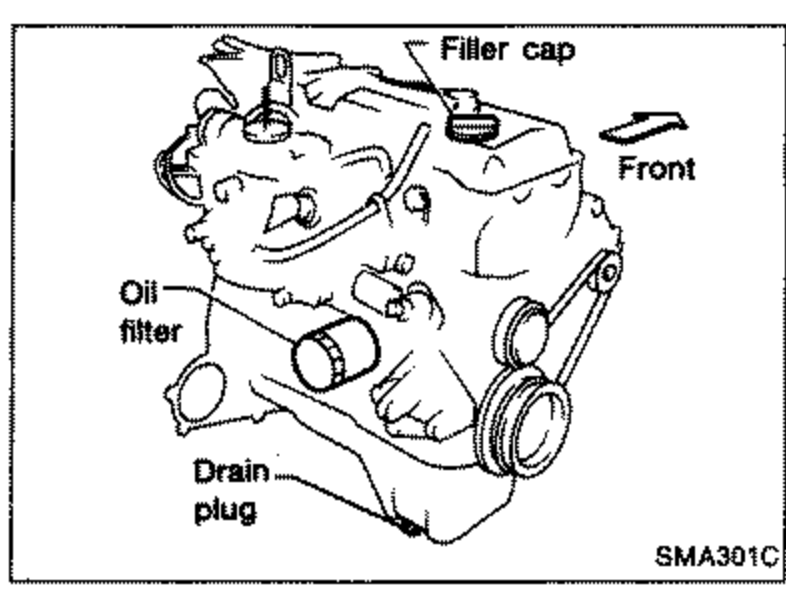

SMA301C - 3Drain oil and refill with new engine oil.
- 4Check oil level.

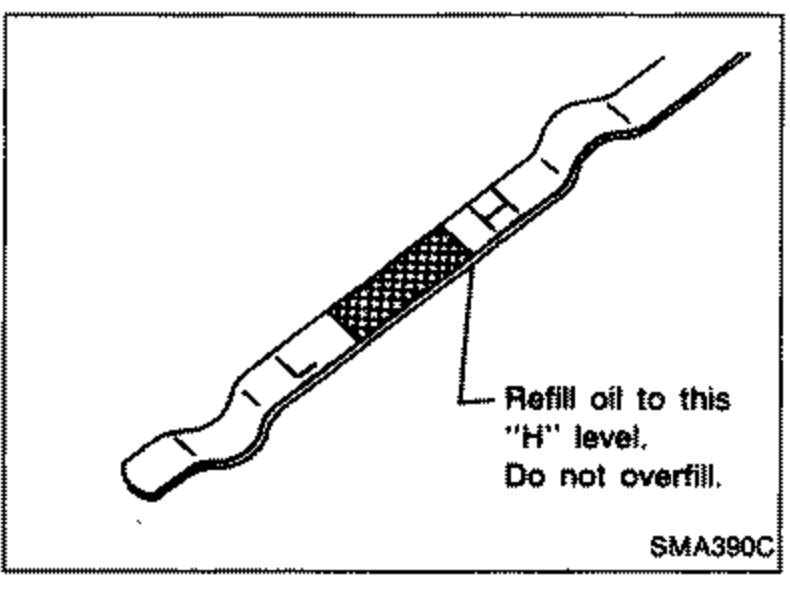

SMA390C - 5Start engine and check area around drain plug and oil filter for oil leakage.
- 6Run engine for a few minutes, then turn it off. After several minutes, check oil level.
Refill oil capacity (Approximate)
With oil filter change
Capacity3.2 (2-7/8)
Without oil filter change
Capacity2.8 (2-1/2)
NOTE
Unit: ℓ (Imp qt)
CAUTION
• Be sure to clean drain plug and install with new washer.
| Specification | Value |
|---|---|
| Drain plug | 29 - 39N·m |
Drain plug
29 - 39N·m
CAUTION
• Use recommended engine oil "API SE (Except Europe), SF or SG" with suitable viscosity.
• Refill oil capacity changes depending on the oil temperature and drain time. Use these values as a reference and be certain to check with the dipstick when changing the oil.
