Engine Lubrication System - Oil Pressure Check / Oil Pump
LC-31prose procedureDistinguishes SR20DE and SR20DET oil pressure switch locations and discharge pressure specs.
Oil Pressure Check
WARNING
Be careful not to burn yourself, as the engine and oil may be hot. Oil pressure check should be done in "Neutral" gear position.
Oil Pressure Check
- 1Check oil level.

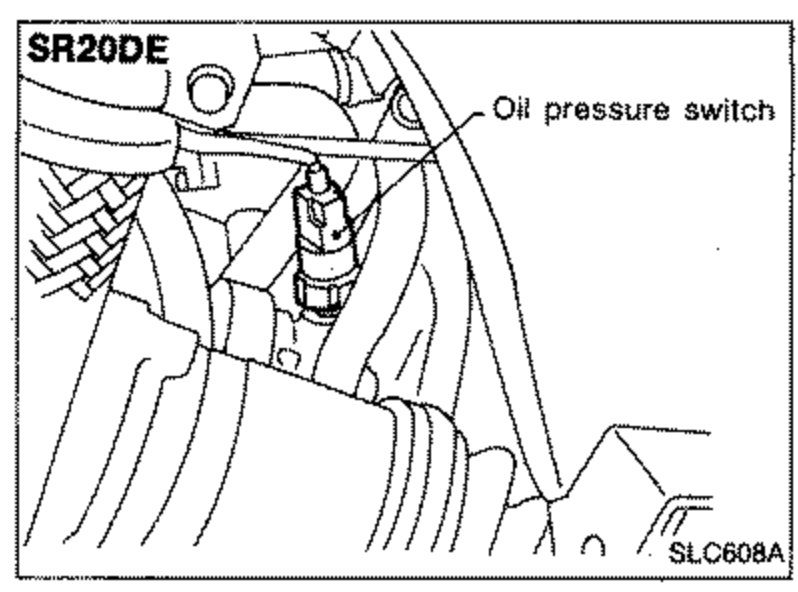

- 2Remove oil pressure switch.

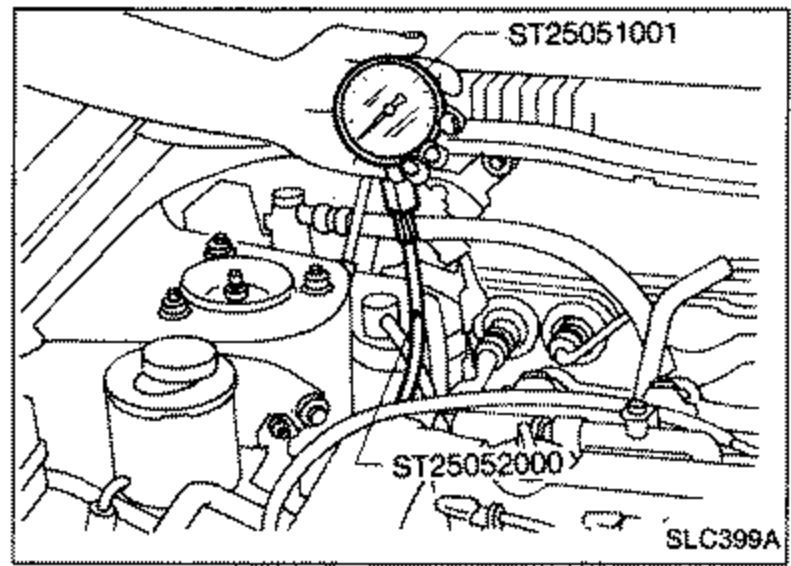

SLC608A - 3Install pressure gauge.
SLC399A - 4Start engine and warm it up to normal operating temperature.
- 5Check oil pressure with engine running under no-load.If difference is extreme, check oil passage and oil pump for oil leaks.
- 6Install oil pressure switch with sealant.
Approximate discharge pressure
Idle speed
Approximate discharge pressure kPa (bar, kg/cm², psi)SR20DE: More than 98 (0.98, 1.0, 14); SR20DET: More than 98 (0.98, 1.0, 14)
3,200
Approximate discharge pressure kPa (bar, kg/cm², psi)SR20DE: 324 - 422 (3.24 - 4.22, 3.3 - 4.3, 47 - 61); SR20DET: 343 - 441 (3.43 - 4.41, 3.5 - 4.5, 50 - 64)
Oil Pump
REMOVAL
Oil Pump - Removal
- 1Remove drive belts.
- 2Remove cylinder head. (Refer to EM section.)
- 3Remove oil pans. (Refer to EM section.)
- 4Remove oil strainer and baffle plate.
- 5Remove front cover assembly.
