Engine Lubrication System — Oil Cooler

LC-58parts diagram

Oil Cooler

CAUTION

Remove any dust from oil seal surface.

Parts DiagramFig. SLC464A

Parts diagram

Part Name	Notes
Oil cooler cover	20-25 N·m (2.0-2.5, 14-18)
O-ring	Q symbol (non-reusable)
Oil cooler stud	34-44 N·m (3.5-4.5, 25-33)
Oil cooler	—
O-ring	Q symbol (non-reusable)
Gasket with O-ring	Q symbol (non-reusable)
Oil cooler support	—
Bolt	16-19 N·m (1.6-1.9, 12-14)

INSPECTION

Oil Cooler Inspection

1
Check oil cooler element and housing for cracks.
2

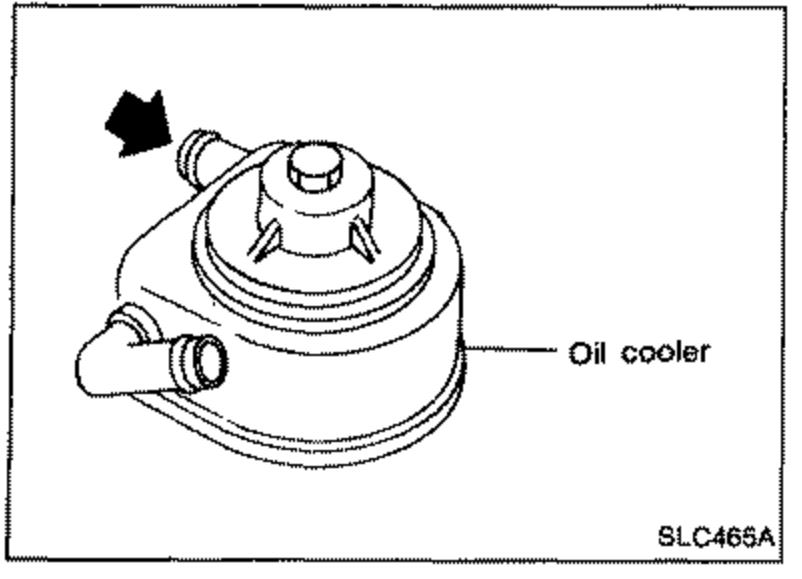

Check coolant inlet of oil cooler for clogging by blowing through it. Replace it if necessary.
SLC465A
