Engine Cooling System - Radiator (Aluminum type)
LC-6parts diagramOil cooler assembly (securing nut, conical washer, washer, O-ring, oil cooler) is fitted on A/T models only.
NOTE
GA, SR, E, CD
Radiator (Aluminum type)
Aluminum radiator can be disassembled by using special procedures and special service tools.
Disassembly

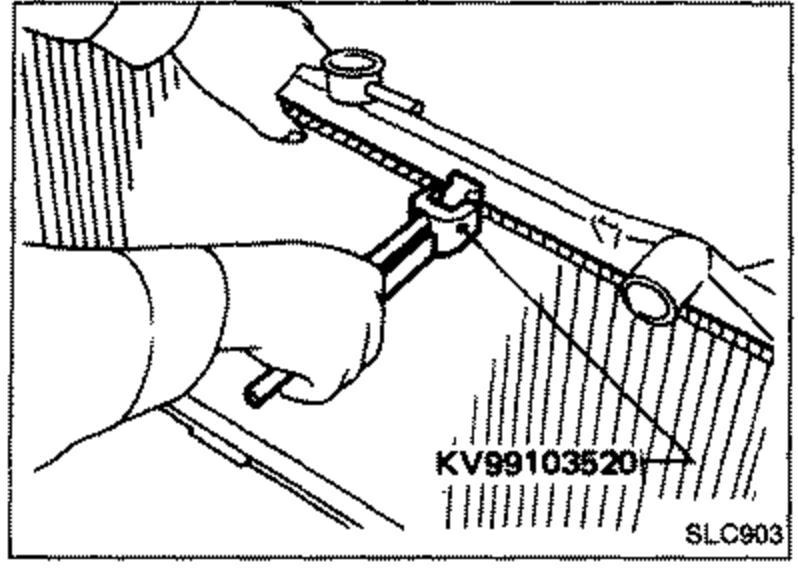

- 1Remove tank with Tool.Grip the crimped edge and bend it upwards so that Tool slips off. Do not bend excessively.
SLC903
| Specification | Value |
|---|---|
| Oil cooler securing nut | 8 - 12N·m |
Oil cooler securing nut
8 - 12N·m
