Water Pump (Cont'd) / Thermostat
LC-39parts diagramWater pump liquid gasket bead spec shown for both SR20DE and SR20DET (identical value).
Water Pump INSTALLATION (Cont'd)

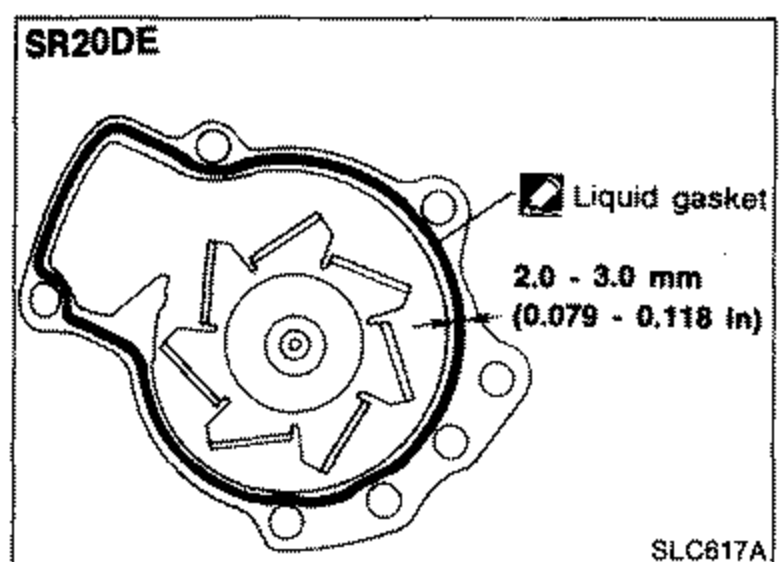

- 2Apply a continuous bead of liquid gasket to mating surface of water pump. Use Genuine Liquid Gasket or equivalent.
SLC617A
| Specification | Value |
|---|---|
| Liquid gasket bead (water pump, SR20DE) | 2.0 - 3.0mm (0.079 - 0.118 in) |
| Liquid gasket bead (water pump, SR20DET) | 2.0 - 3.0mm (0.079 - 0.118 in) |
Liquid gasket bead (water pump, SR20DE)
2.0 - 3.0mm (0.079 - 0.118 in)
Liquid gasket bead (water pump, SR20DET)
2.0 - 3.0mm (0.079 - 0.118 in)
Thermostat
Parts DiagramFig. fig3
| Specification | Value |
|---|---|
| Air relief plug | 6.3 - 8.3N·m (0.64 - 0.85 kg-m, 4.6 - 6.1 ft-lb) |
| Thermostat housing bolt | 16 - 21N·m (1.6 - 2.1 kg-m, 12 - 15 ft-lb) |
| Liquid gasket bead (thermostat) | 2.0 - 3.0mm (0.079 - 0.118 in) |
Air relief plug
6.3 - 8.3N·m (0.64 - 0.85 kg-m, 4.6 - 6.1 ft-lb)
Thermostat housing bolt
16 - 21N·m (1.6 - 2.1 kg-m, 12 - 15 ft-lb)
Liquid gasket bead (thermostat)
2.0 - 3.0mm (0.079 - 0.118 in)
