Water Pump (Cont'd)

LC-17prose procedure

Continued from LC-16

ENGINE COOLING SYSTEM

Water Pump (Cont'd)

INSTALLATION

NOTE

Before installing water pump, remove liquid gasket from mating surface of water pump using a scraper.

IMPORTANT

Be sure liquid gasket in grooves is also removed.

NOTE

Remove liquid gasket from mating surface of front cover. Remove all traces of liquid gasket using white gasoline. Apply liquid gasket to mating surface of pump housing as shown.

Specification	Value
Liquid gasket bead diameter(0.079 - 0.118 in) dia.	2.0 - 3.0mm

Liquid gasket bead diameter(0.079 - 0.118 in) dia.

2.0 - 3.0mm

Thermostat

INSPECTION

1

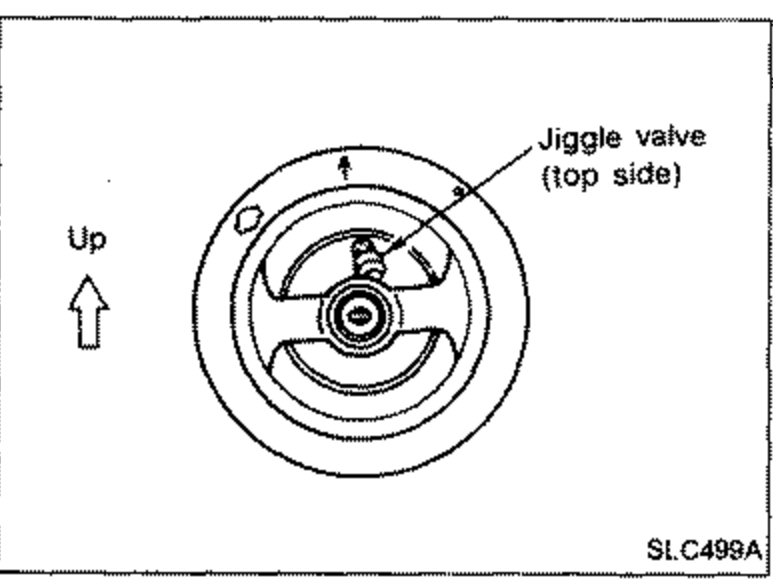

Check for valve seating condition at ordinary temperatures. It should seat tightly.
SLC499A
2

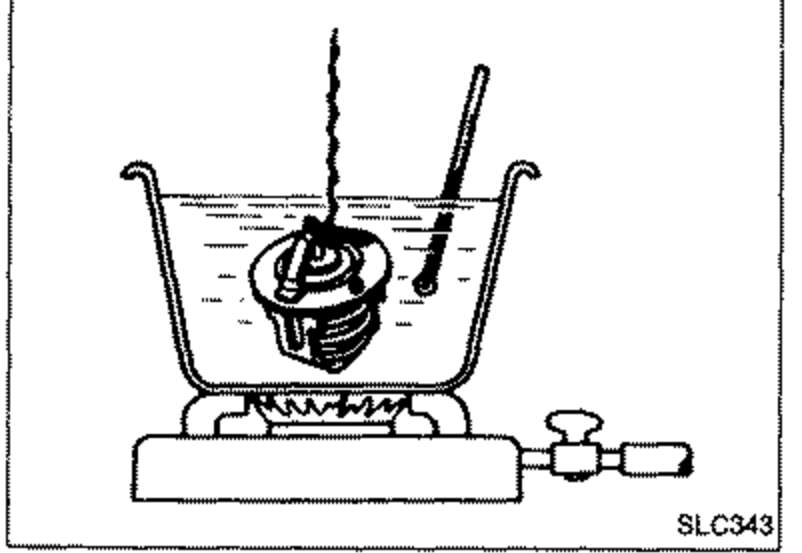

Check valve opening temperature and maximum valve lift.
SLC343
3
Then check if valve closes at 5°C (9°F) below valve opening temperature.
After installation, run engine for a few minutes, and check for leaks.
