Engine Cooling System - Radiator (Aluminum type) (Cont'd)

LC-8prose procedure

1.5 mm spacer on tool tip is used only with the square shaped sealing rubber.

Continued from LC-7

Radiator (Aluminum type) (Cont'd)

Assembly (Cont'd)

  1. 3 (cont'd)

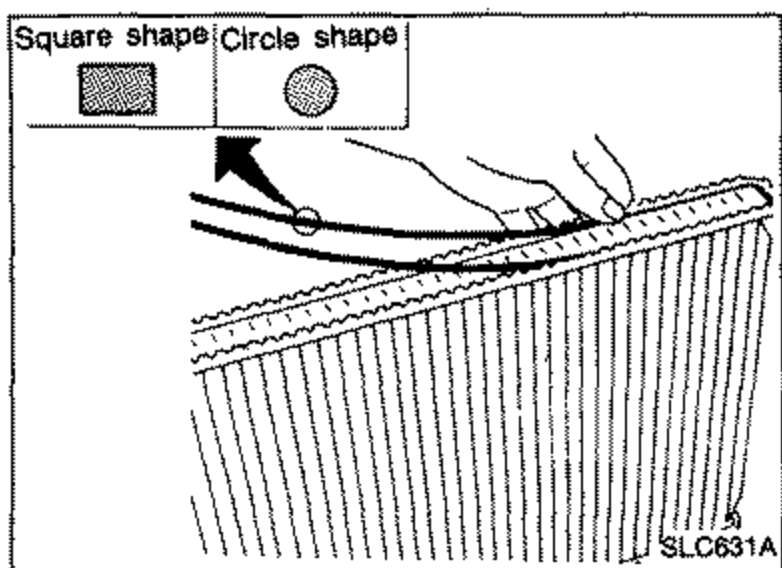

    Push it in with fingers.
    Be careful not to twist sealing rubber.
    Illustration of pushing the sealing rubber into place on the radiator core by hand. An inset at top left shows the two sealing rubber shapes side by side: 'Square shape' and 'Circle shape'.
    SLC631A
  2. 4

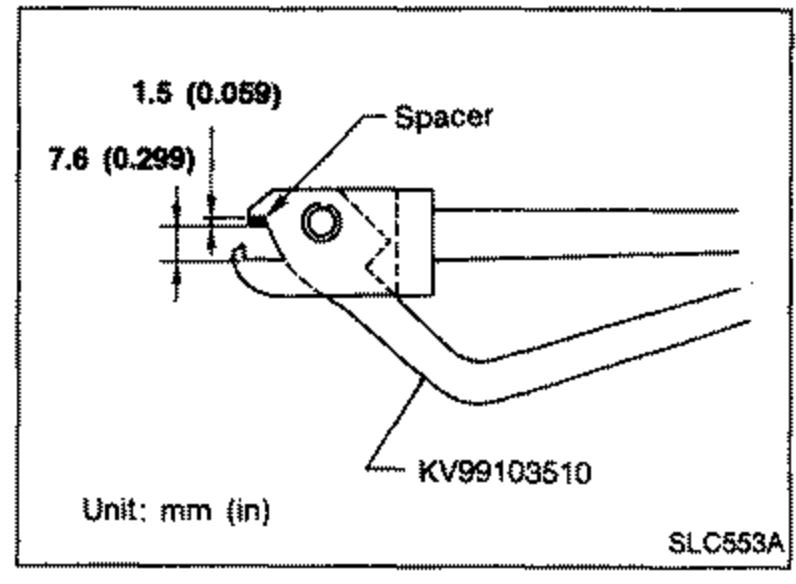

    Attach a 1.5 mm (0.059 in) thick spacer to the tip of Tool. (Square shaped sealing rubber only)
    Dimensioned illustration of attaching a 1.5 mm (0.059 in) thick spacer to the tip of Tool KV99103510. Dimensions shown: 1.5 (0.059) for spacer thickness and 7.6 (0.299) for another tool dimension. Units: mm (in). Labels: 'Spacer', 'KV99103510'.
    SLC553A
  3. 5

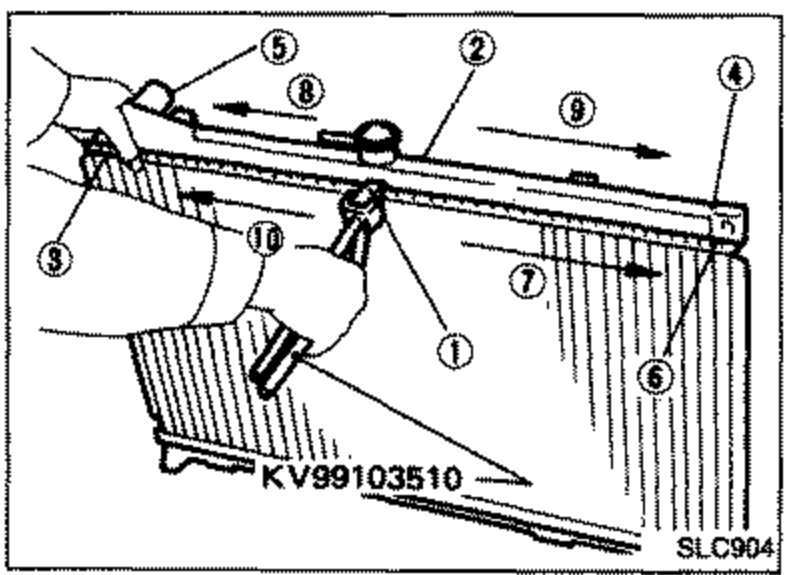

    Caulk tank in specified sequence with Tool.
    Keep tool perpendicular to the radiator.
    Use pliers in the locations where Tool cannot be used.
    Illustration of caulking the radiator tank in the specified sequence using Tool KV99103510. Numbered crimping positions 1 through 10 are marked around the tank rim indicating the order of caulking.
    SLC904
