Engine Lubrication System - Oil Pump (Cont'd) - Inspection / Regulator Valve Inspection

LC-33prose procedure

Oil Pump (Cont'd)

Using a feeler gauge, check the following clearances:

Clearance	Value mm (in)
Body to outer gear clearance (1)	0.114 - 0.200 (0.0045 - 0.0079)
Inner gear to outer gear tip clearance (2)	Below 0.18 (0.0071)
Body to outer gear clearance (3)	0.05 - 0.09 (0.0020 - 0.0035)
Body to outer gear clearance (4)	0.05 - 0.11 (0.0020 - 0.0043)
Inner gear to brazed portion of housing clearance (5)	0.045 - 0.091 (0.0018 - 0.0036)

Body to outer gear clearance (1)

Value mm (in)0.114 - 0.200 (0.0045 - 0.0079)

Inner gear to outer gear tip clearance (2)

Value mm (in)Below 0.18 (0.0071)

Body to outer gear clearance (3)

Value mm (in)0.05 - 0.09 (0.0020 - 0.0035)

Body to outer gear clearance (4)

Value mm (in)0.05 - 0.11 (0.0020 - 0.0043)

Inner gear to brazed portion of housing clearance (5)

Value mm (in)0.045 - 0.091 (0.0018 - 0.0036)

NOTE

If the tip clearance (2) exceeds the limit, replace gear set. If body to gear clearances (1, 3, 4, 5) exceed the limit, replace front cover assembly.

1
Visually inspect components for wear and damage.

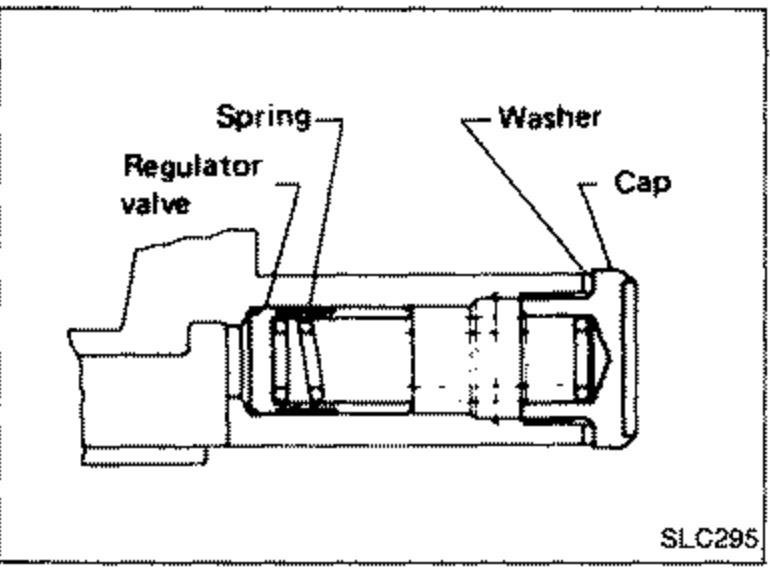

SLC295
2
Check oil pressure regulator valve sliding surface and valve spring.
3
Coat regulator valve with engine oil and check that it falls smoothly into the valve hole by its own weight.
If damaged, replace regulator valve set or front cover assembly.
