Engine Cooling System — Water Pump

LC-60prose procedure

CD17: install water pump with a new gasket. CD20: install water pump with liquid gasket. Separate water pump views for CD17 (SLC467A) and CD20 (SLC562A).

Water Pump

REMOVAL AND INSTALLATION

Water Pump Removal and Installation

  1. 1
    Drain engine coolant from radiator and cylinder block.

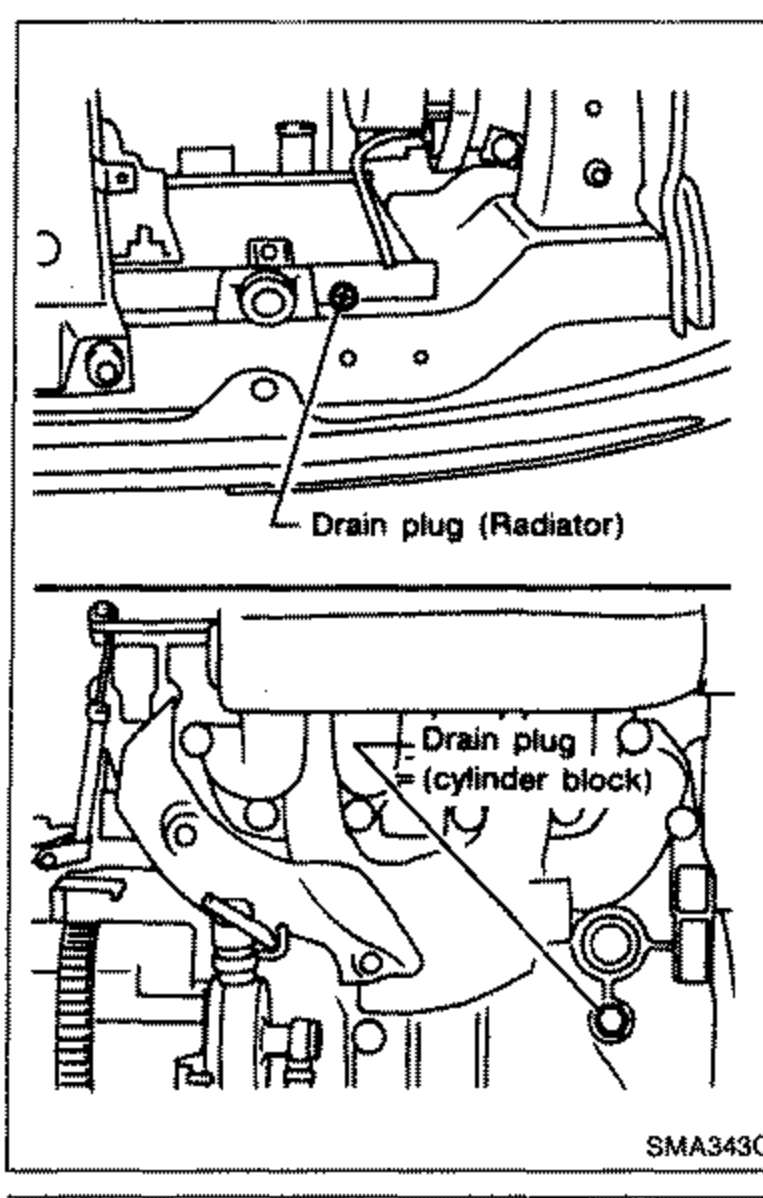

    Two stacked engine views showing drain plug locations: upper image labels 'Drain plug (Radiator)', lower image labels 'Drain plug (cylinder block)'.
    SMA343C
  2. 2
    Remove upper radiator hose, timing belt covers, front engine mounting bracket and timing belt.
  3. 3
    Remove timing belt tensioner and idler and timing belt lower back cover.
  4. 4
    Remove water pump.

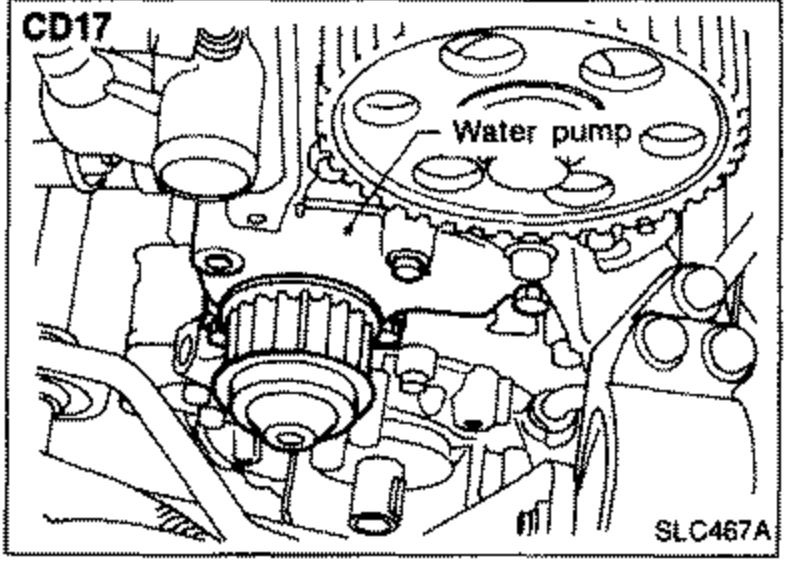

    CD17 water pump shown installed on engine with leader line labeling 'Water pump'.
    SLC467A
  5. 5
    Install water pump with a new gasket. (CD17) Install water pump with liquid gasket. (CD20)

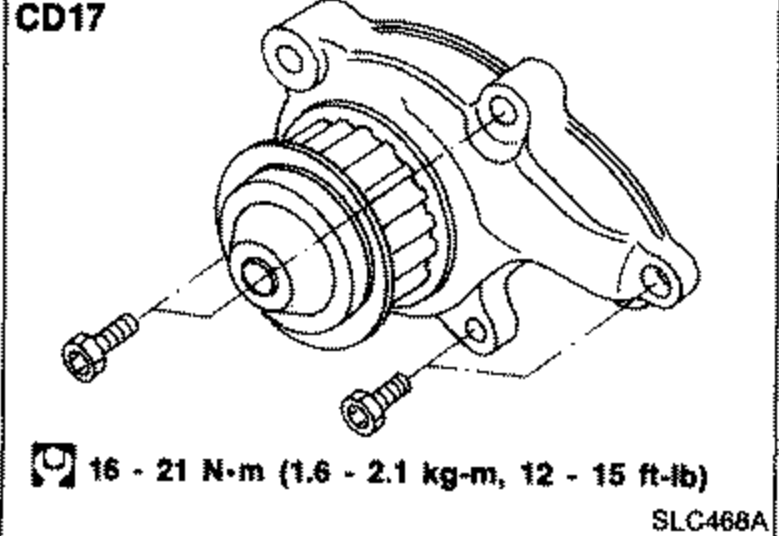

    CD17 water pump exploded view with mounting bolts. Tightening torque 16-21 N·m (1.6-2.1 kg-m, 12-15 ft-lb).
    SLC468A
Water pump boltCD17
157 - 206N·m
