Oil Pressure Check

LC-43prose procedure

WARNING

Be careful not to burn yourself, as the engine and oil may be hot. Oil pressure check should be done in "Neutral" gear position.

1
Warm up engine.
2
Stop engine and remove oil pressure switch.
SLC483A
3

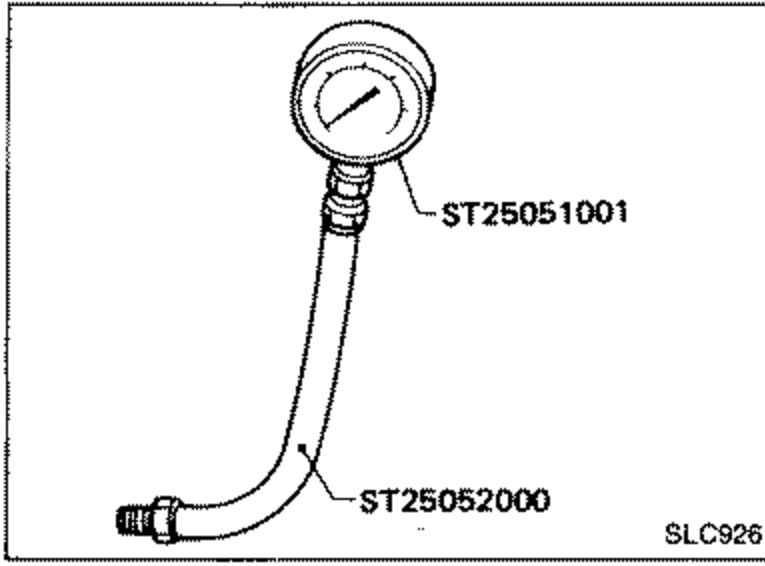

Install pressure gauge.
SLC926
4
Start engine and warm it up to normal operating temperature.
5
Check oil pressure with engine running under no-load.
6
Install oil pressure switch. Oil pressure switch torque: 10 - 16 N·m (1.0 - 1.6 kg-m, 7 - 12 ft-lb)
Oil pressure switch torque: 10 - 16 N·m (1.0 - 1.6 kg-m, 7 - 12 ft-lb)

Engine rpm	Approximate discharge pressure kPa (bar, kg/cm², psi)
Idle speed	More than 59 (0.59, 0.6, 9)
3,000	363 - 520 (3.63 - 5.20, 3.7 - 5.3, 53 - 75)

Idle speed

Approximate discharge pressure kPa (bar, kg/cm², psi)More than 59 (0.59, 0.6, 9)

3,000

Approximate discharge pressure kPa (bar, kg/cm², psi)363 - 520 (3.63 - 5.20, 3.7 - 5.3, 53 - 75)

Specification	Value
Oil pressure switch	≈98 - 157N·m

Oil pressure switch

98 - 157N·m
