Engine Lubrication System - Oil Pressure Check (Cont'd)

LC-11spec table

Oil pressure values shown are for the GA engine.

NOTE

Oil Pressure Check (Cont'd)

Engine speed rpm	Approximate discharge pressure kPa (bar, kg/cm², psi)
Idle speed	49 - 186 (0.49 - 1.86, 0.5 - 1.9, 7 - 27)
3,000	343 - 441 (3.43 - 4.41, 3.5 - 4.5, 50 - 64)

Idle speed

Approximate discharge pressure kPa (bar, kg/cm², psi)49 - 186 (0.49 - 1.86, 0.5 - 1.9, 7 - 27)

3,000

Approximate discharge pressure kPa (bar, kg/cm², psi)343 - 441 (3.43 - 4.41, 3.5 - 4.5, 50 - 64)

3

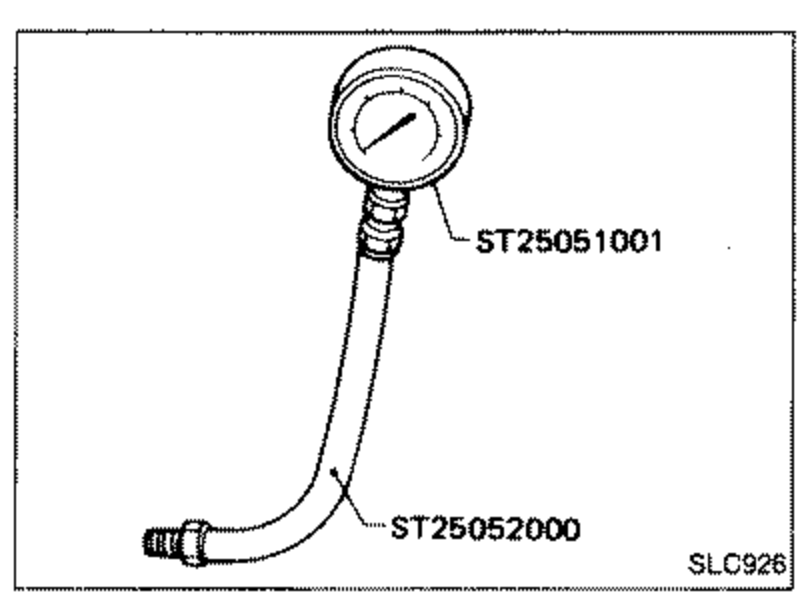

Install pressure gauge.
SLC926
4
Start engine and warm it up to normal operating temperature.
5
Check oil pressure with engine running under no-load.
If difference is extreme, check oil passage and oil pump for oil leaks.
6
Install oil pressure switch with sealant.
