Engine Cooling System - Radiator (Aluminum type) (Cont'd) / Inspection
LC-9prose procedureStandard crimp height differs by sealing rubber shape (square 8.0-8.4 mm vs circle 9.5-9.9 mm). Attaching a hose to the oil cooler during pressure test applies to A/T models only.
NOTE
GA, SR, E, CD
Radiator (Aluminum type) (Cont'd)
Assembly (Cont'd)

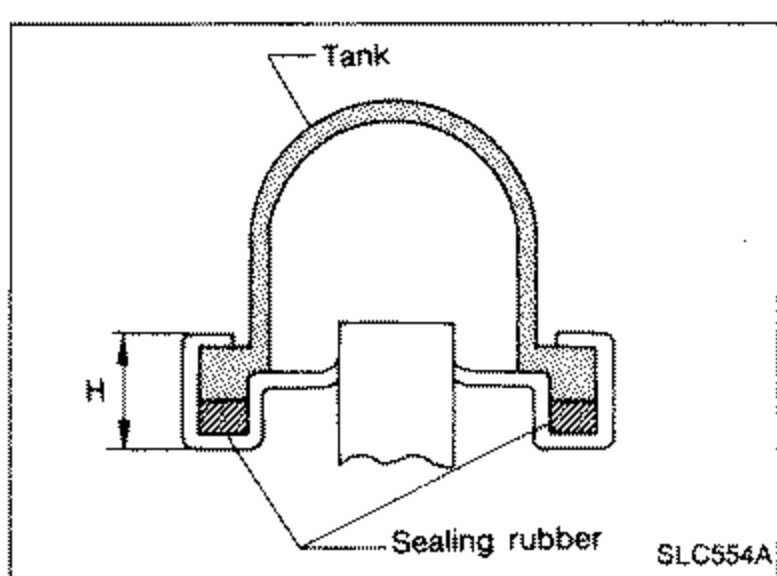

- 6Make sure that the rim is completely crimped down.Standard height "H": Square shaped sealing rubber 8.0 - 8.4 mm (0.315 - 0.331 in); Circle shaped sealing rubber 9.5 - 9.9 mm (0.374 - 0.390 in)
SLC554A - 7Confirm that there is no leakage. Refer to Inspection.
| Specification | Value |
|---|---|
| Square shaped sealing rubber(0.315 - 0.331 in) | 8.0 - 8.4mm |
| Circle shaped sealing rubber(0.374 - 0.390 in) | 9.5 - 9.9mm |
Square shaped sealing rubber(0.315 - 0.331 in)
8.0 - 8.4mm
Circle shaped sealing rubber(0.374 - 0.390 in)
9.5 - 9.9mm
INSPECTION
Apply pressure with Tool.
| Specification | Value |
|---|---|
| Specified pressure value(1.57 bar, 1.6 kg/cm², 23 psi) | 157kPa |
Specified pressure value(1.57 bar, 1.6 kg/cm², 23 psi)
157kPa
WARNING
To prevent the risk of the hose coming undone while under pressure, securely fasten it down with a hose clamp. Attach a hose to the oil cooler as well. (A/T models only)
