FUEL SYSTEM - Fuel Pump and Gauge (Cont'd)

FE-9prose procedure

Continuation of fuel pump/gauge removal for 4WD models.

Continued from FE-8

Fuel Pump and Gauge (Cont'd)

REMOVAL (4WD models) (Cont'd)

  1. 4
    Remove lock nut using special service tool KV999G0010.

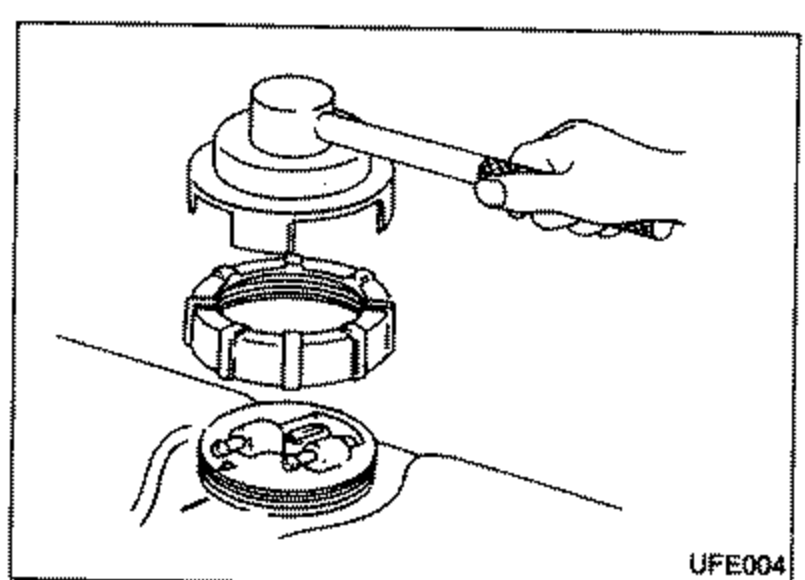

    View of the fuel gauge/pump unit with the lock nut being removed using the special service tool KV999G0010 (lock ring socket on a handle), and the upper plate exposed.
    UFE004
  2. 5
    Remove upper plate.
  3. 6
    While lifting upper plate, disconnect tube and harness connector and remove fuel pump.

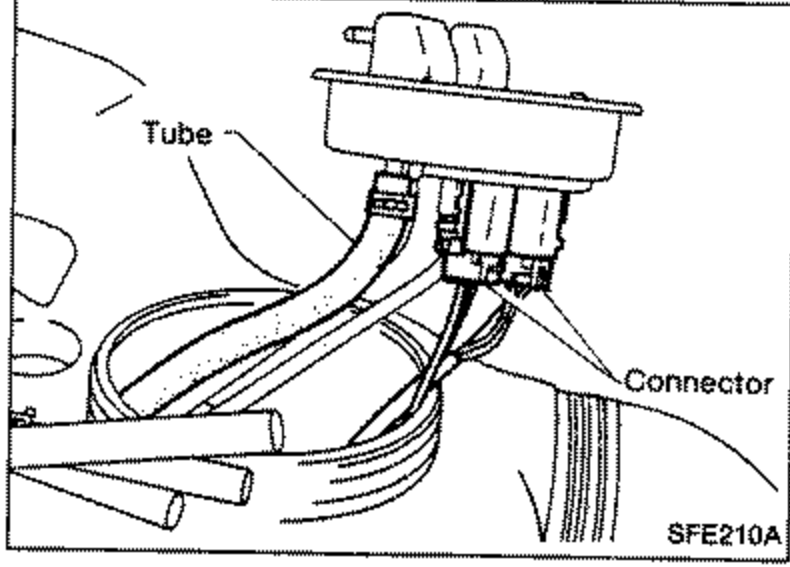

    View of the upper plate lifted to disconnect the tube and harness connector and remove the fuel pump. Labels: Tube, Connector.
    SFE210A
  4. 7
    Disconnect harness connector from inside of fuel tank and remove fuel gauge.

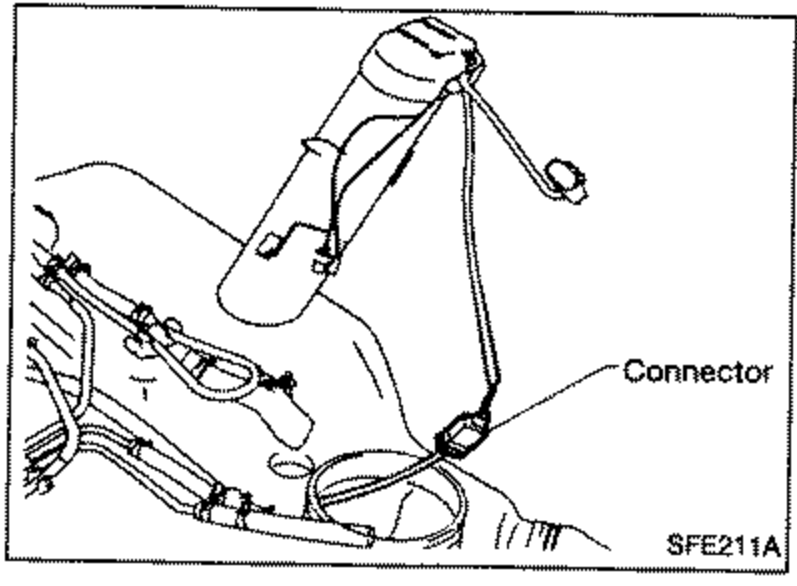

    View showing the harness connector being disconnected from inside the fuel tank to remove the fuel gauge. Label: Connector.
    SFE211A

INSTALLATION

Installation procedure is the reverse order of removal.
