FUEL SYSTEM - Fuel Pump and Gauge (Cont'd)

FE-7prose procedure

Fuel pump removal for 2WD E.C.C.S. engine models; a separate removal procedure begins for 2WD except E.C.C.S. engine models.

Continued from FE-6

Fuel Pump and Gauge (Cont'd)

REMOVAL (2WD E.C.C.S. engine models) (Cont'd)

  1. 3

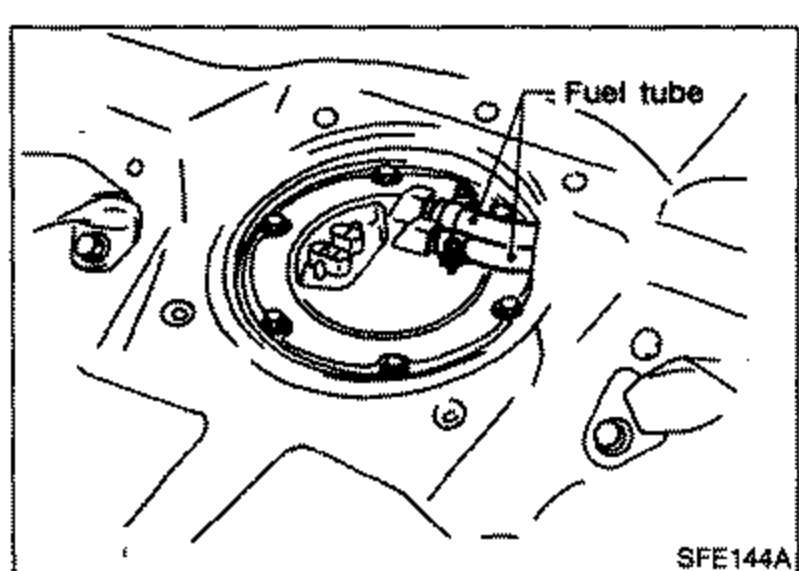

    Disconnect fuel tubes and connectors.
    Top view of the fuel pump/gauge unit mounting plate with fuel tube (labeled) and connectors visible, showing the six screws to be removed.
    SFE144A
  2. 4
    Remove the six screws.
  3. 5

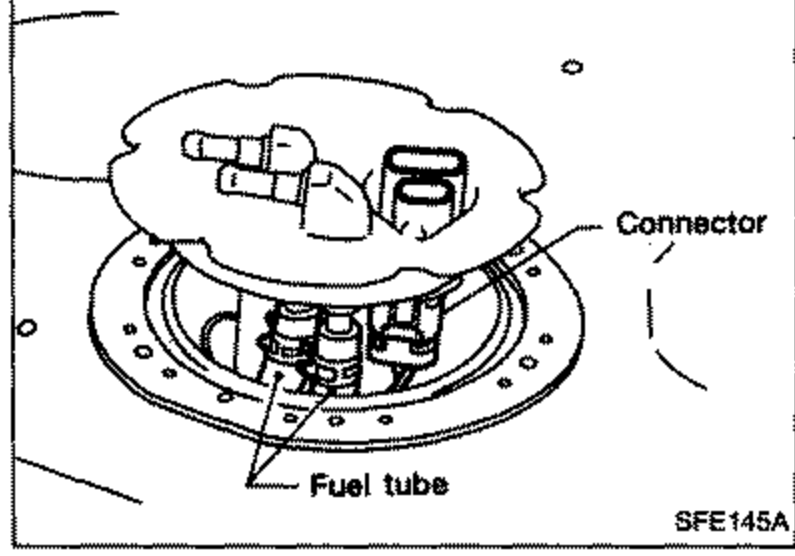

    Remove fuel gauge assembly and disconnect tubes and connector.
    View of the fuel gauge assembly being removed with tubes and connector disconnected. Labels: Connector, Fuel tube.
    SFE145A
  4. 6

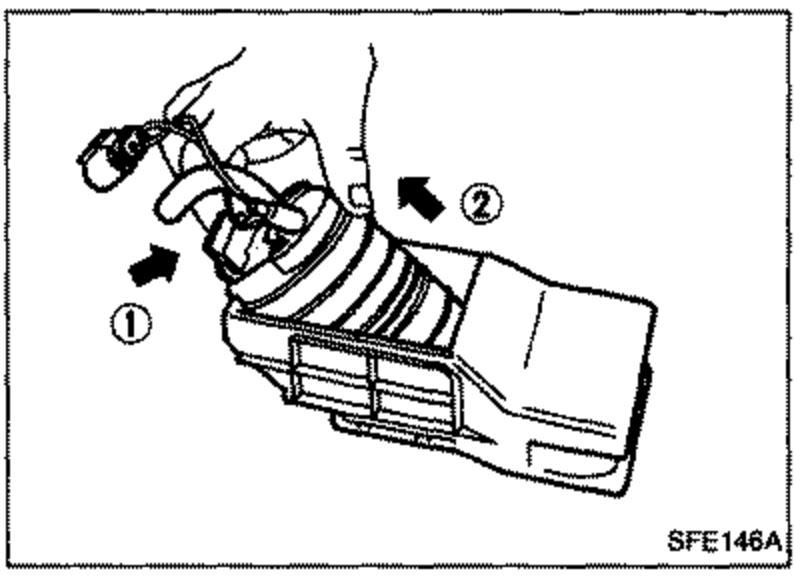

    Remove fuel pump as shown in the figure.
    Illustration of the fuel pump removal with directional arrows numbered 1 and 2 showing the motion to release and remove the pump from its bracket.
    SFE146A

INSTALLATION

Installation procedure is the reverse order of removal.

REMOVAL (2WD except E.C.C.S. engine models)

  1. 1

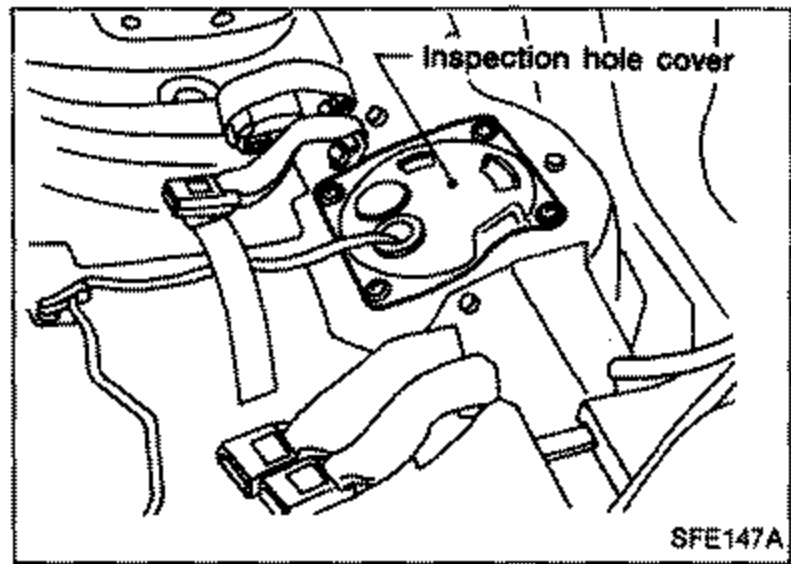

    Remove inspection hole cover located beneath the rear seat.
    View beneath the rear seat showing the inspection hole cover (labeled) over the fuel gauge unit for 2WD except E.C.C.S. engine models.
    SFE147A
