FUEL SYSTEM - Fuel tank (Cont'd) / Fuel Pump and Gauge

FE-6prose procedure

Fuel tank removal steps 6-9 for 4WD models. Fuel Pump and Gauge removal for 2WD E.C.C.S. engine models.

Continued from FE-5

Fuel tank (Cont'd)

REMOVAL (4WD models) (Cont'd)

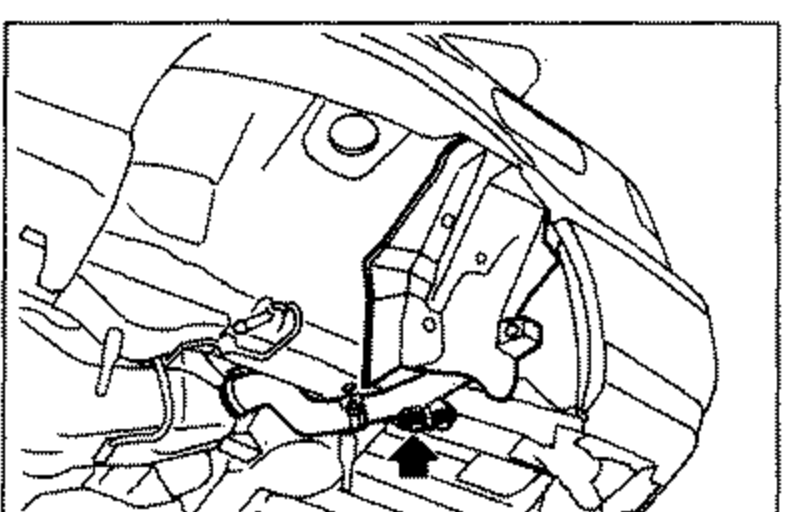

  1. 6
    Remove filler protector and filler tube.
    Underbody/luggage area view showing the filler protector and filler tube being removed.
    SFE189A

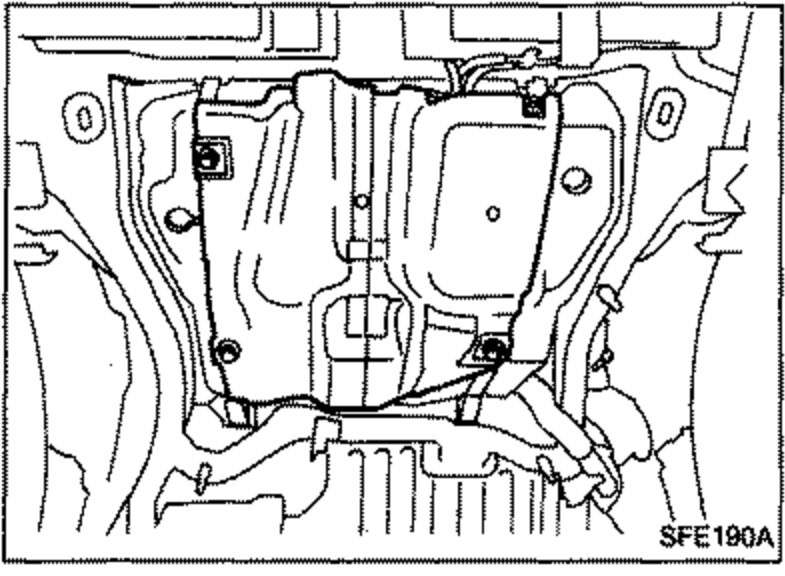

  2. 7
    Remove fuel tank protector.
    Underbody view showing the fuel tank protector being removed from beneath the fuel tank.
    SFE190A

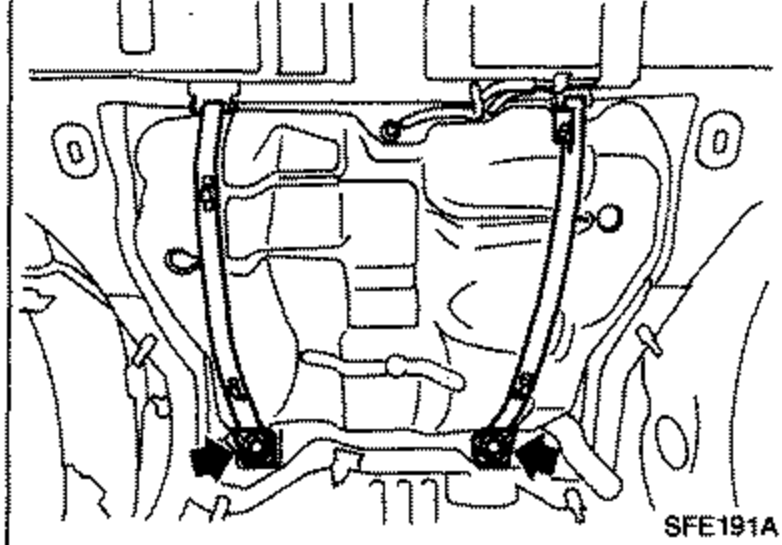

  3. 8
    Remove tank mounting band bolts while supporting fuel tank.
    Underbody view showing the fuel tank mounting band bolts being removed while supporting the fuel tank.
    SFE191A

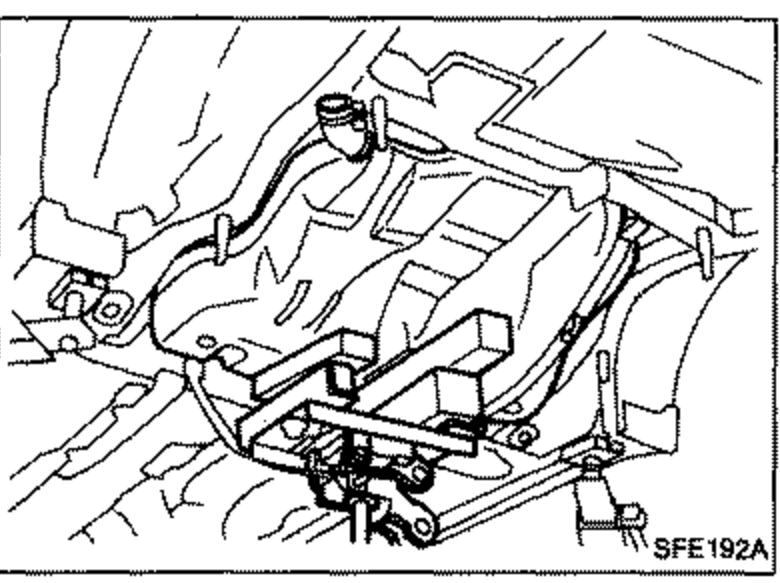

  4. 9
    Remove fuel tank.
    Underbody view showing the fuel tank being removed from the vehicle.
    SFE192A

Fuel Pump and Gauge

REMOVAL (2WD E.C.C.S. engine models)

  1. 1
    Release fuel pressure from fuel line. Refer to "Fuel Filter Replacement" in MA section.

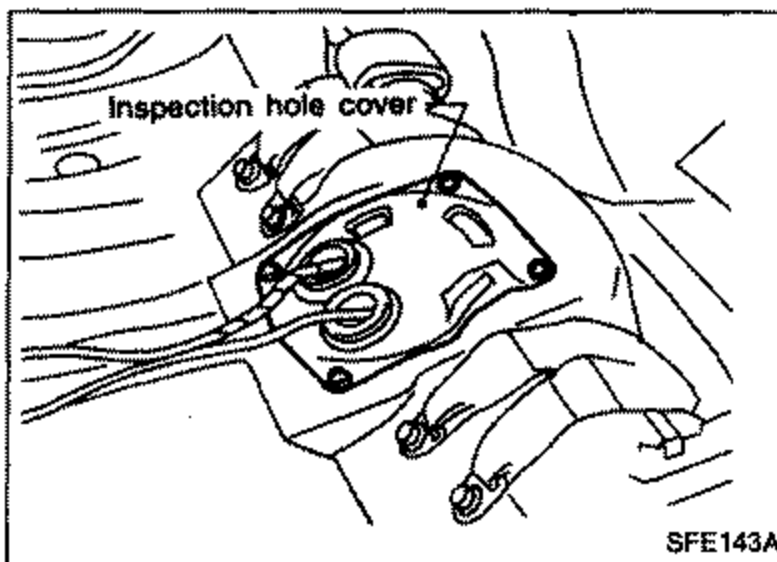

  2. 2
    Remove inspection hole cover located beneath the rear seat.
    View beneath the rear seat showing the inspection hole cover (labeled) over the fuel pump and gauge unit for 2WD E.C.C.S. engine models.
    SFE143A
