FUEL SYSTEM - Fuel tank Preparation & Removal

FE-5prose procedure

Removal procedure is for 4WD models.

Preparation

Tool number / Tool name	Description
KV999G0010 / Fuel tank lock ring socket	Fuel tank lock ring socket

KV999G0010 / Fuel tank lock ring socket

DescriptionFuel tank lock ring socket

CAUTION

• Do not disconnect any fuel line unless absolutely necessary. • Plug hose and pipe openings to prevent entry of dust or oil.

1
Release fuel pressure from fuel line. Refer to "Fuel Filter Replacement" in MA section.
2

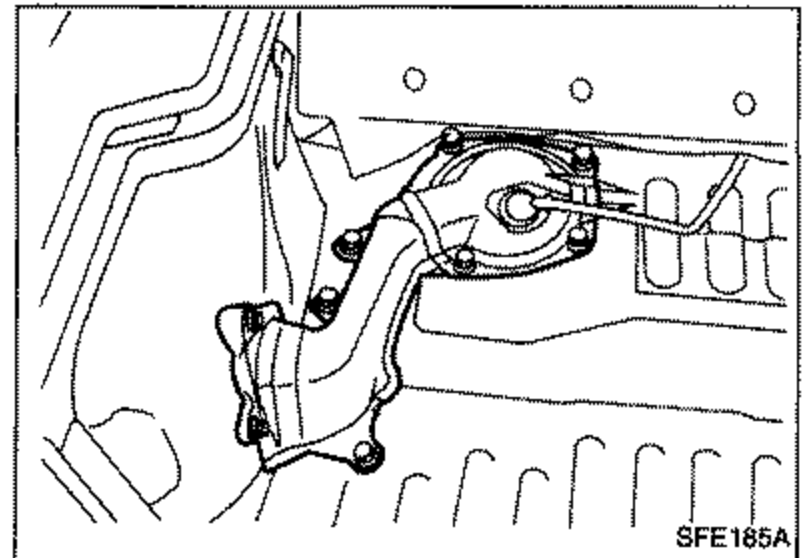

Remove inspection hole cover and vent tube cover located on the luggage compartment floor.
SFE185A
3

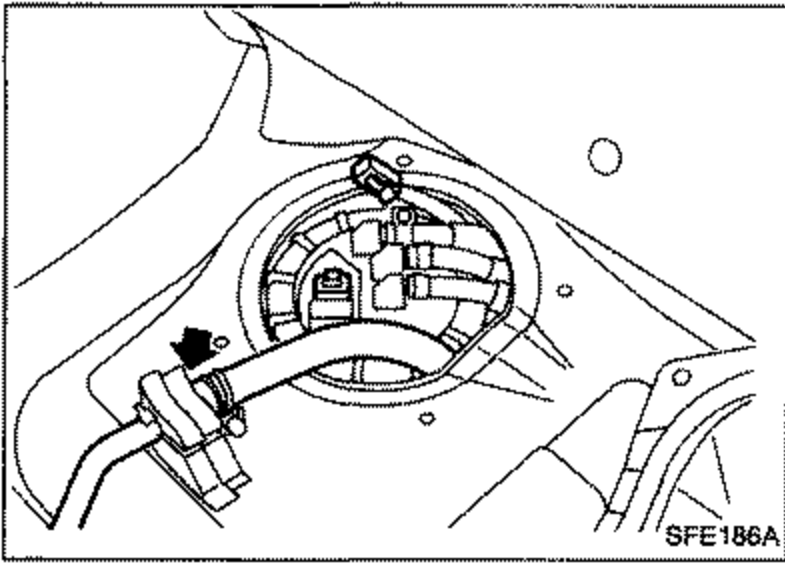

Disconnect fuel tubes and connector.
SFE186A
4
Remove propeller shaft, differential carrier, suspension member and drive shaft (Refer to RA section).
SFE188A
5
Disconnect tubes.
