ACCELERATOR CONTROL SYSTEM
FE-2prose procedureCAUTION
• When removing accelerator cable, make a mark to indicate lock nut's initial position.
• Check that throttle valve opens fully when accelerator pedal is fully depressed and that it returns to idle position when pedal is released.
• Check accelerator control parts for improper contact with any adjacent parts.
• When connecting accelerator cable, be careful not to twist or scratch its inner wire.

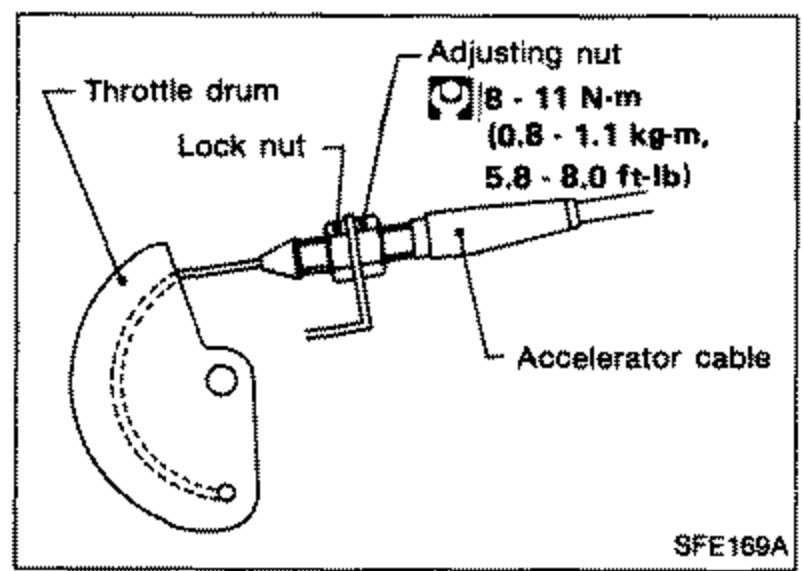

Adjusting Accelerator Cable
- 1Tighten adjusting nut until throttle drum starts to move.
SFE169A - 2From that position turn back adjusting nut 1.5 to 2 turns, and fasten it with lock nut.
