FUEL SYSTEM - Fuel Pump and Gauge (Cont'd)

FE-8prose procedure

Fuel gauge removal/installation for 2WD except E.C.C.S. engine models, then a separate REMOVAL procedure for 4WD models.

Continued from FE-7

Fuel Pump and Gauge (Cont'd)

REMOVAL (2WD except E.C.C.S. engine models) (Cont'd)

  1. 2
    Disconnect fuel tubes.

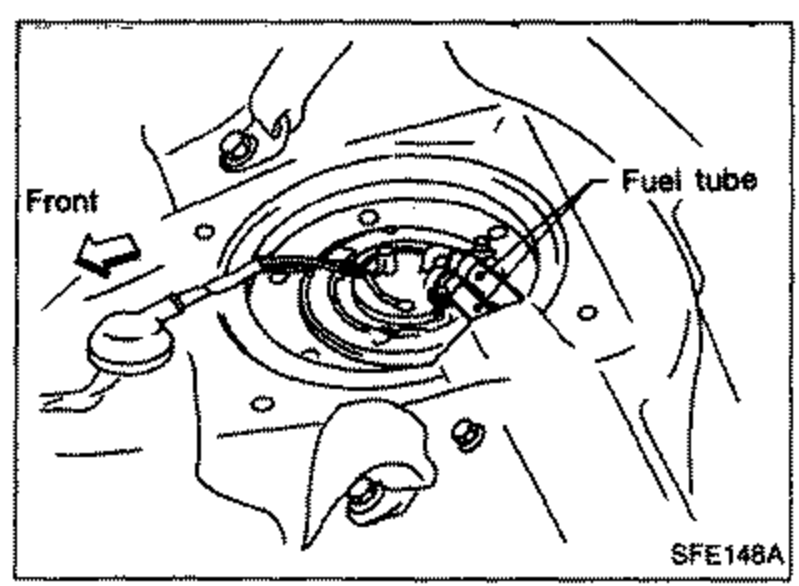

    Top view of the fuel gauge unit mounting plate showing fuel tubes being disconnected. Labels: Front (with arrow), Fuel tube.
    SFE148A
  2. 3
    Remove lock ring.

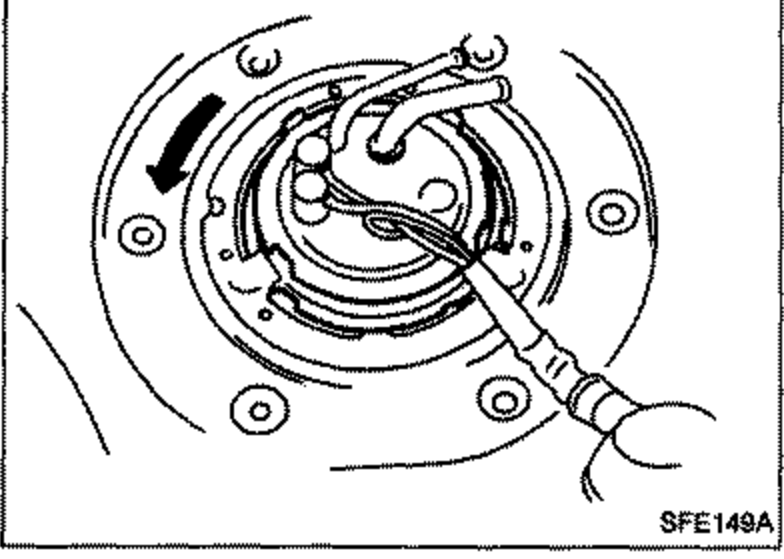

    View of the lock ring being rotated (arrow) for removal, exposing the fuel gauge unit beneath.
    SFE149A
  3. 4
    Remove fuel gauge.

INSTALLATION

Installation procedure is the reverse order of removal.

REMOVAL (4WD models)

  1. 1
    Release fuel pressure from fuel line. Refer to "Fuel Filter Replacement" in MA section.
  2. 2
    Remove inspection hole cover and vent tube cover located on the luggage compartment floor.

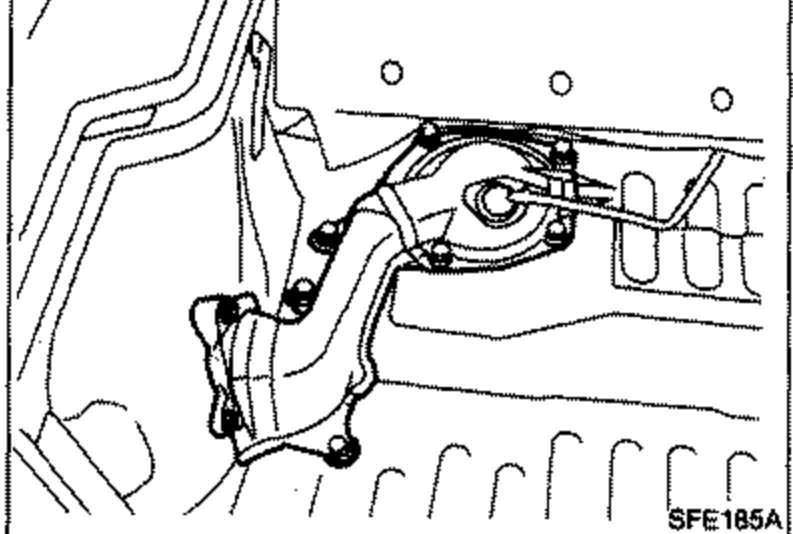

    View of the luggage compartment floor showing the inspection hole cover and vent tube cover location for 4WD models fuel gauge removal.
    SFE185A
  3. 3
    Disconnect fuel tubes and connector.

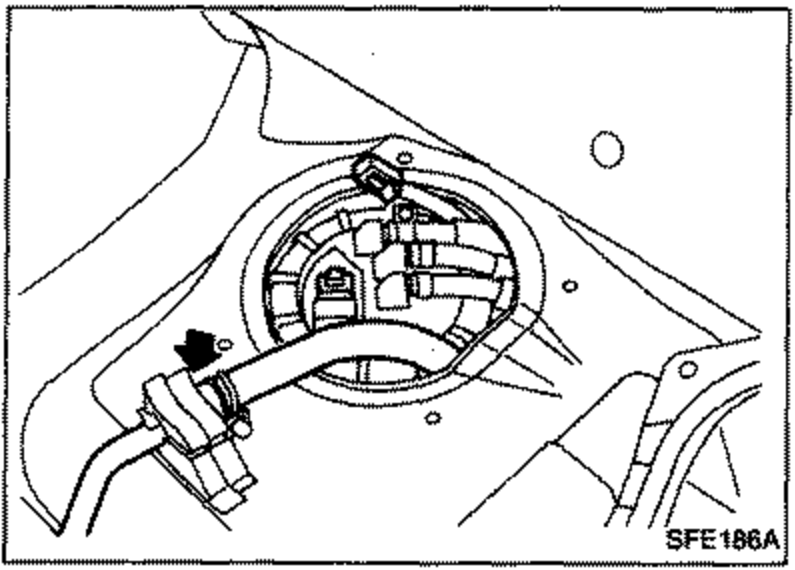

    Close-up of the fuel gauge unit top showing fuel tubes and connector being disconnected.
    SFE186A
