HOW TO USE THIS MANUAL

GI-8prose procedure

HOW TO USE THIS MANUAL

  1. 1
    A QUICK REFERENCE INDEX, a black tab (e.g. BR) is provided on the first page. You can quickly find the first page of each section by mating it to the section's black tab.
  2. 2
    THE CONTENTS are listed on the first page of each section.
  3. 3
    THE TITLE is indicated on the upper portion of each page and shows the part or system.
  4. 4
    THE PAGE NUMBER of each section consists of two letters which designate the particular section and a number (e.g. "BR-5").
  5. 5

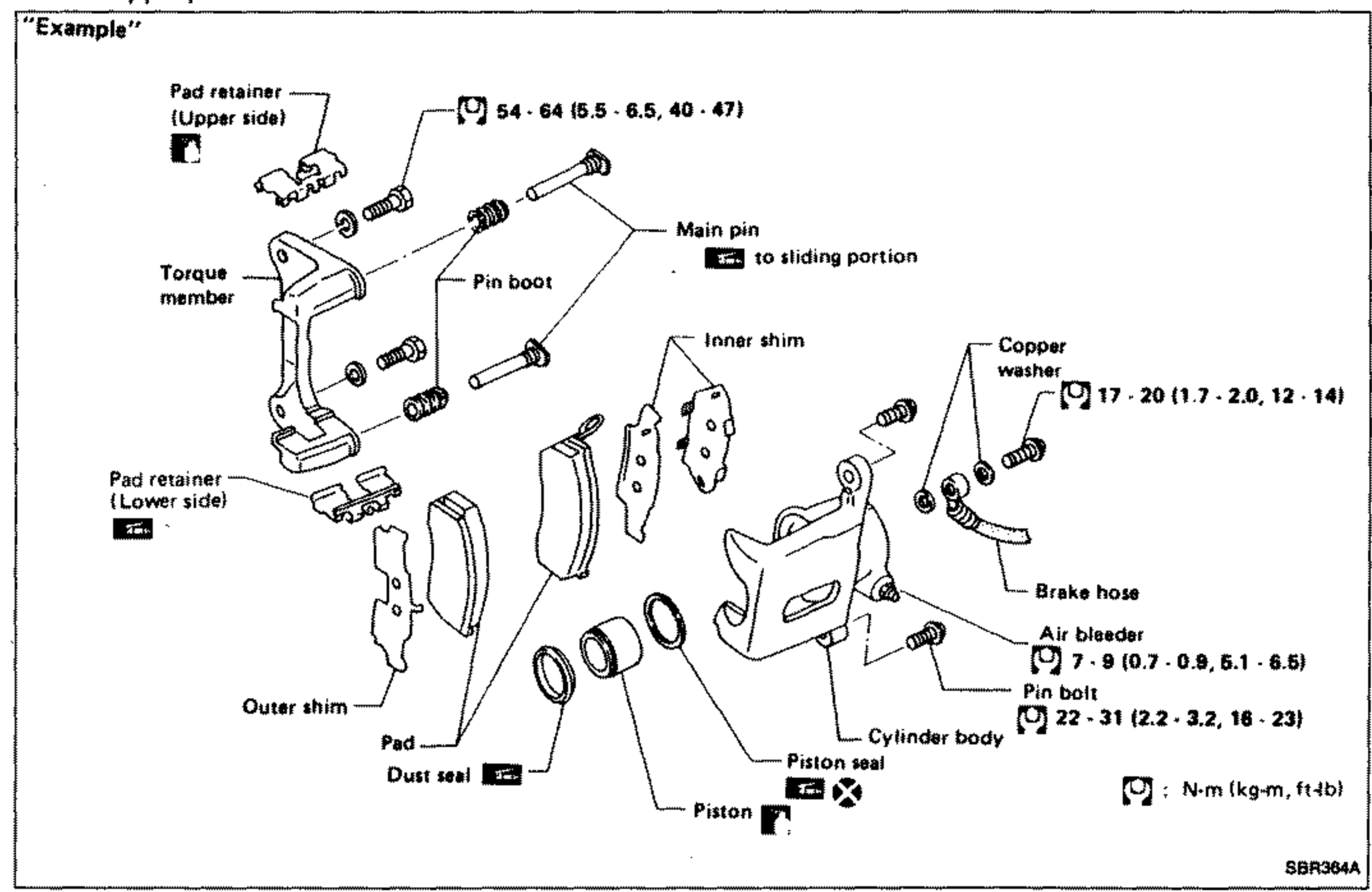

    THE LARGE ILLUSTRATIONS are exploded views (See below) and contain tightening torques, lubrication points and other information necessary to perform repairs. The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG.
    Example exploded view of a front disc brake assembly used to illustrate how Large Illustrations work. Shows torque member, main pin, pin boot, inner shim, outer shim, pad retainers (upper and lower side), pads, dust seal, piston, piston seal, cylinder body, copper washer, brake hose, air bleeder and pin bolt. Tightening-torque callouts in N-m (kg-m, ft-lb): 54-64 (5.5-6.5, 40-47), 17-20 (1.7-2.0, 12-14), 7-9 (0.7-0.9, 5.1-6.5), 22-31 (2.2-3.2, 16-23). Notes 'Main pin to sliding portion'.
    SBR364A
  6. 6
    THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks of work and hidden or tricky steps which are not shown in the previous large illustrations. Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle or transmission, etc. are presented in a step-by-step format where necessary.
  7. 7
    The following SYMBOLS AND ABBREVIATIONS are used:

Symbols and Abbreviations

(tightening torque symbol)
MeaningTightening torque
(grease symbol)
MeaningShould be lubricated with grease. Unless otherwise indicated, use recommended multi-purpose grease.
(oil symbol)
MeaningShould be lubricated with oil.
(sealing symbol)
MeaningSealing point
(checking symbol)
MeaningChecking point
(replace symbol)
MeaningAlways replace after every disassembly.
L.H., R.H.
MeaningLeft-Hand, Right-Hand
FR, RR
MeaningFront, Rear
2WD
Meaning2-Wheel Drive
4WD
Meaning4-Wheel Drive
M/T
MeaningManual Transaxle/Transmission
A/T
MeaningAutomatic Transaxle/Transmission
A/C
MeaningAir Conditioner
P/S
MeaningPower Steering
S.S.T.
MeaningSpecial Service Tools
S.D.S.
MeaningService Data and Specifications
SAE
MeaningSociety of Automotive Engineers, Inc.
G.C.C.
MeaningGulf Cooperation Council
L.H.D.
MeaningLeft-Hand Drive
R.H.D.
MeaningRight-Hand Drive
